Nuevo

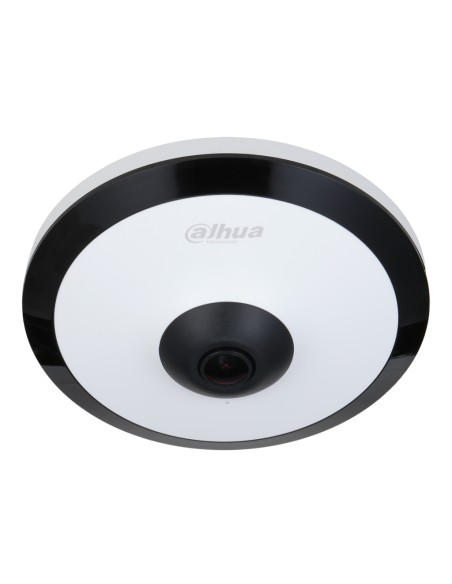

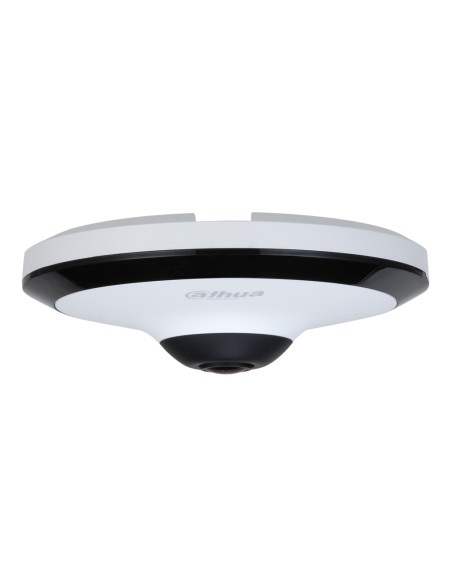

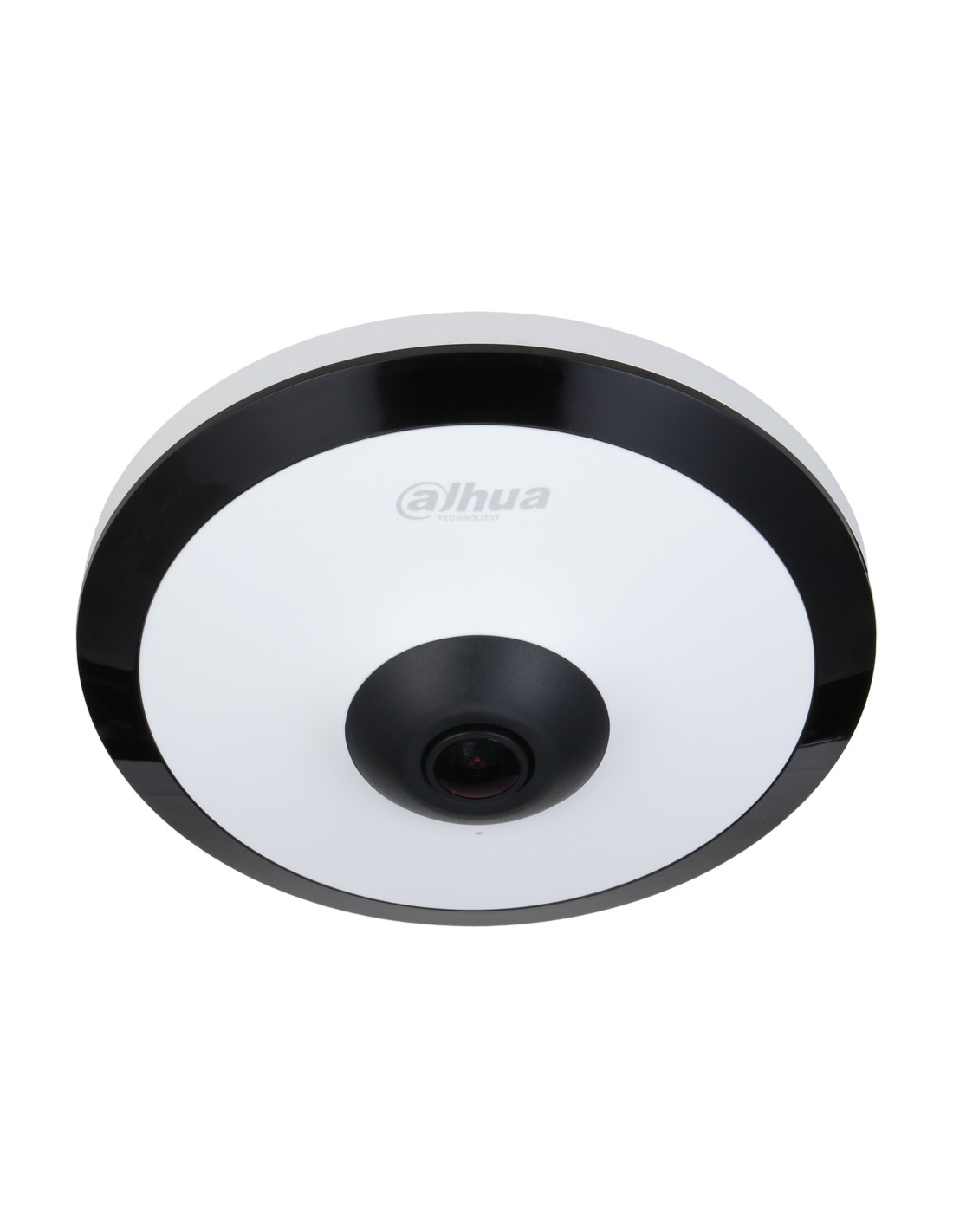

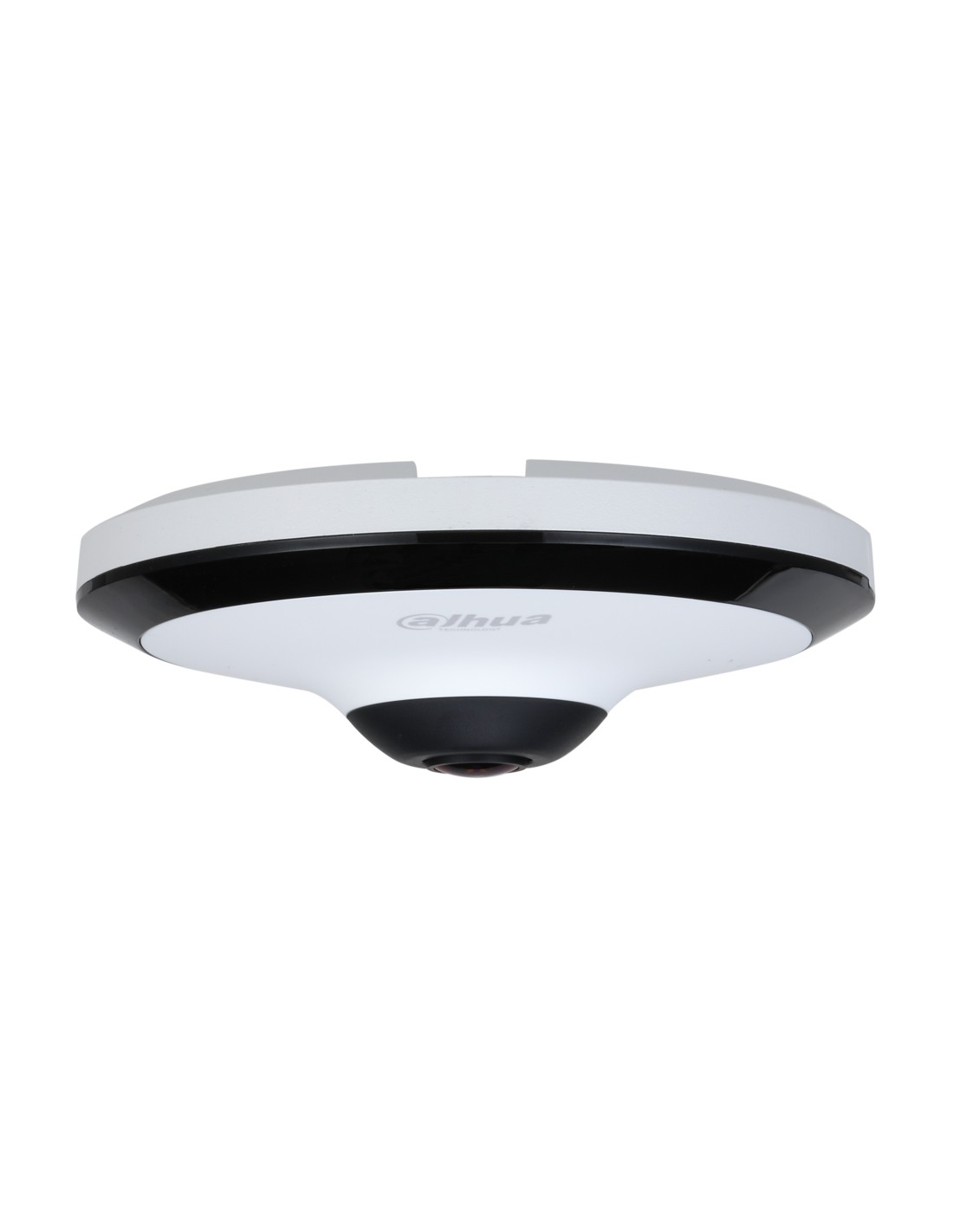

FishEye H265 5M DN WDR IR10m 1.4mm Audio SD PoE MIC E/S AI

Marca: DAHUA

Referencia DHI-IPC-EW5541-AS

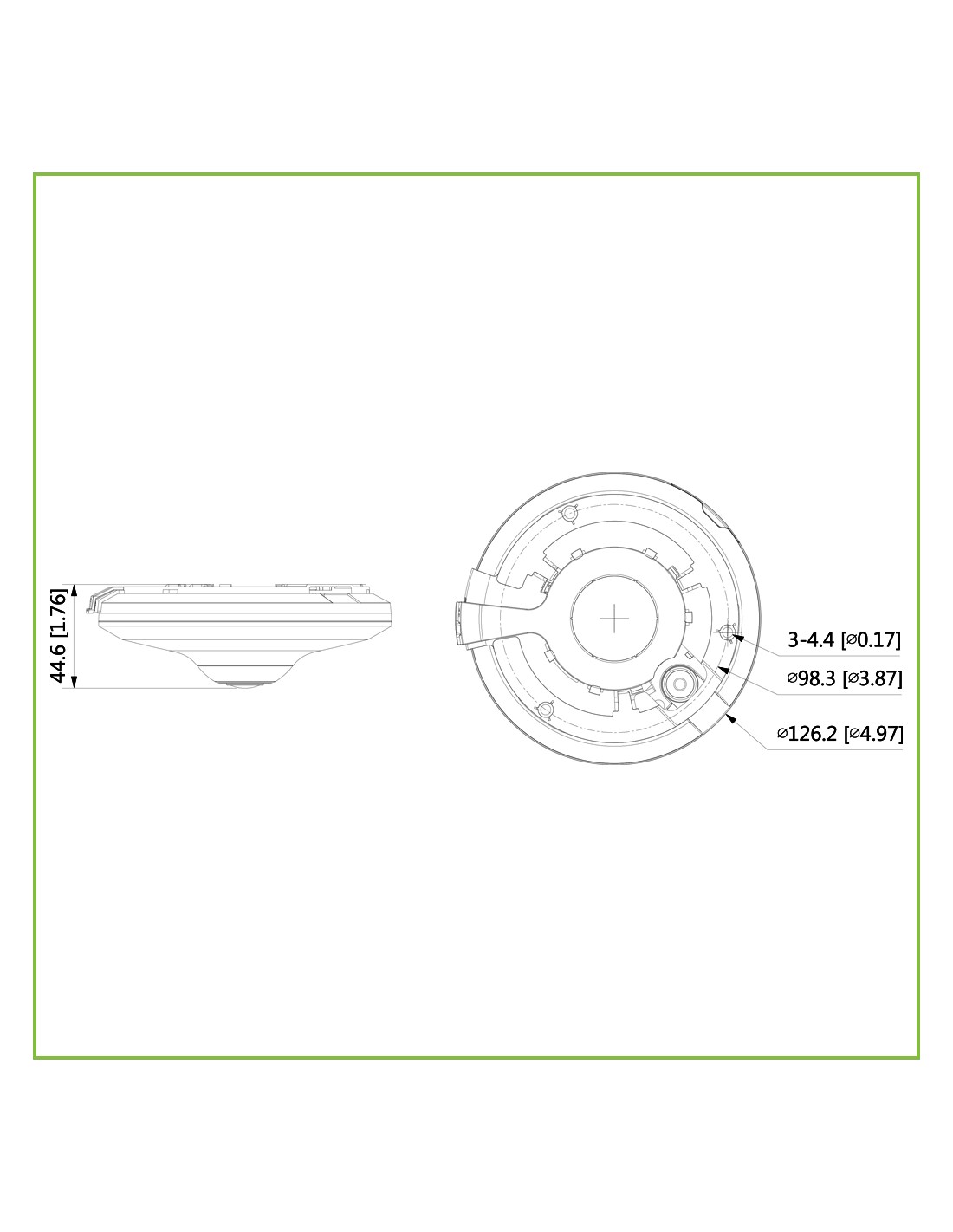

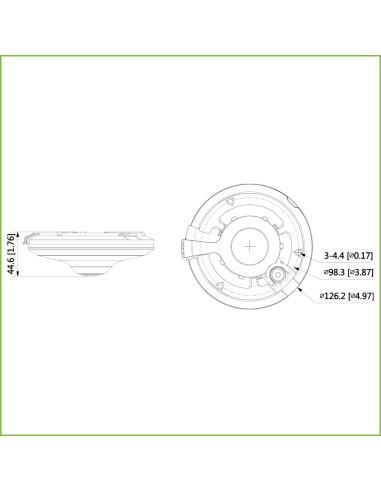

- Resolución hasta 5MP@25IPS. - Óptica Fija de 1.4mm (180°x180°x180° (HxVxD)), F2.0. - 3 Streams simultáneos hasta 20 usuarios. - Alimentación PoE y 12Vdc (3.6W (12Vdc) 4.4W (PoE)). - 1E/1S Audio, E/S Alarma, Micro Integrado. - Dimensiones y peso: ?126.2x44.6mm / 0.299Kg. * AI: People counting in area, Intelligent Search, Heat Map.

Descripción

Dahua Technology WizMind IPC-EW5541P-AS. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Housing material: Metal, Plastic. Minimum illumination: 0.006 lx, Lens viewing angle, horizontal: 180°, Lens viewing angle, vertical: 180°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"), Number of effective pixels (H x V): 2592 x 1944 pixels. Detect distance: 28 m, Observe distance: 11.2 m, Recognize distance: 5.6 m

Performance

Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Dynamic range: 120 dB
Certification: CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Design

Mounting type: Ceiling/wall
Product colour: Black, White
Housing material: Metal, Plastic

Camera

Minimum illumination: 0.006 lx
Lens viewing angle, horizontal: 180°
Lens viewing angle, vertical: 180°
Lens viewing angle, diagonal: 180°
White balance: Auto, Manual, Natural, Outdoor, Street lamp
Camera shutter speed: 1/3 -1/100000 s
Adjustment shutter speed: Auto/Manual

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
Progressive scan: Yes
Sensor type: CMOS
Number of effective pixels (H x V): 2592 x 1944 pixels

Lens system

Number of lenses: 1
Detect distance: 28 m
Observe distance: 11.2 m
Recognize distance: 5.6 m
Focal length range: 1.4 mm
Maximum aperture number: 2
Identify distance: 2.8 m
Closest focusing distance: 2 m

Night vision

Night vision: Yes
Night vision distance: 10 m
LED type: IR
Number of illumination LEDs: 3

Video

Maximum resolution: 2592 x 1944 pixels
Total megapixels: 5 MP
Video formats supported: H.264+, H.265+
Video compression formats: H.264, H.264B, H.264H, H.265
Supported graphics resolutions: 352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1600 x 1200 (UXGA), 2048 x 1536 (QXGA), 2592 x 1944
Supported video modes: 720p
Frame rate: 30 fps
Noise reduction: Yes
Noise reduction technology: 3D noise reduction
Privacy masking: Yes
Bit rate control: Constant Bit Rate (CBR), Variable Bit Rate (VBR)
Bit rate: H.264: 3 kbps–8192 kbps H.265: 3 kbps–8192 kbps
Back Light Compensation (BLC): Yes
Highlight Compensation (HLC): Yes
Region of Interest (ROI) encoding: Yes

Audio

Audio input channels: 1.0 channels
Audio output channels: 1.0 channels
Audio formats supported: G.726, PCM
Signal-to-Noise Ratio (SNR): 56 dB
Built-in microphone: Yes

Network

Ethernet LAN: Yes
Supported network protocols: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP
Number of users: 20 user(s)

Storage

Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash)
Maximum memory card size: 256 GB
Internal memory: 512 MB
ROM capacity: 128 MB

Security

Alarm input channels: 1
Alarm output channels: 1
Video motion detection: Yes
Intelligent Video Surveillance (IVS) system features: Heat map, Intrusion, Tripwire

Management features
