- Nuevo

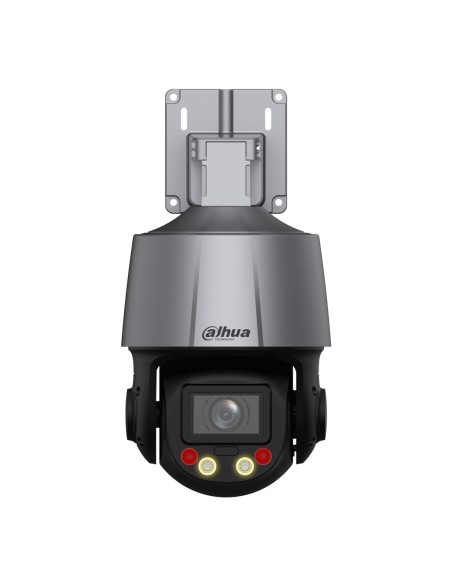

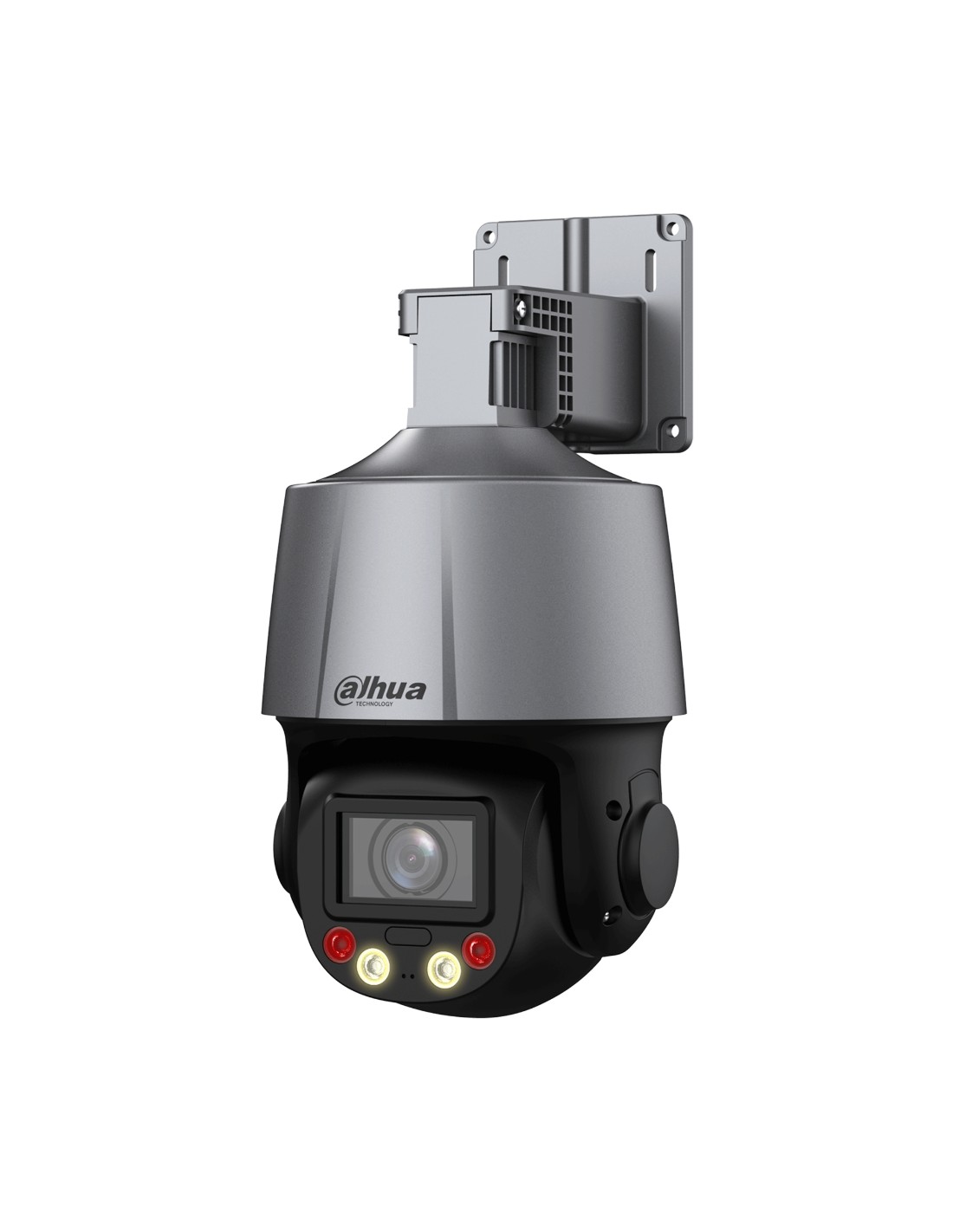

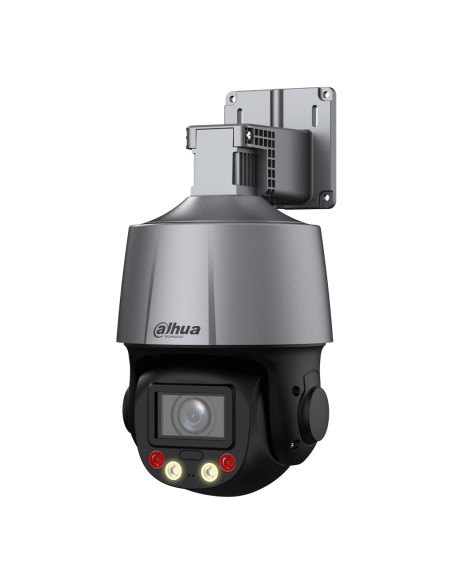

Dahua Technology WizSense SD22404DB-GNY. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: White, Form factor: Dome. Minimum illumination: 0.0005 lx, Lens viewing angle, horizontal: 90.3 - 29.4°, Lens viewing angle, vertical: 48.5 - 16.6°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 4x, Digital zoom: 16x, Detect distance: 240 m
Performance
Performance
- Type: IP security camera
- Placement supported: Outdoor
- Connectivity technology: Wired
- PTZ control: Yes
- PTZ modes: 5 Pattern, 8 Tour
- PTZ protocols: Pelco-P/D
- Tour recording: Yes
- Preset points: Yes
- Day/night mode: Yes
- Form factor: Dome

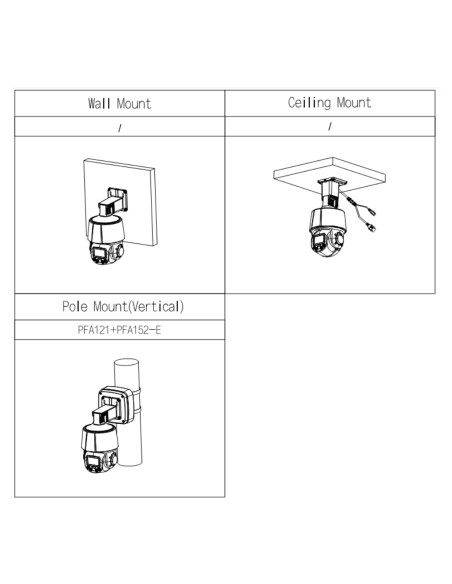

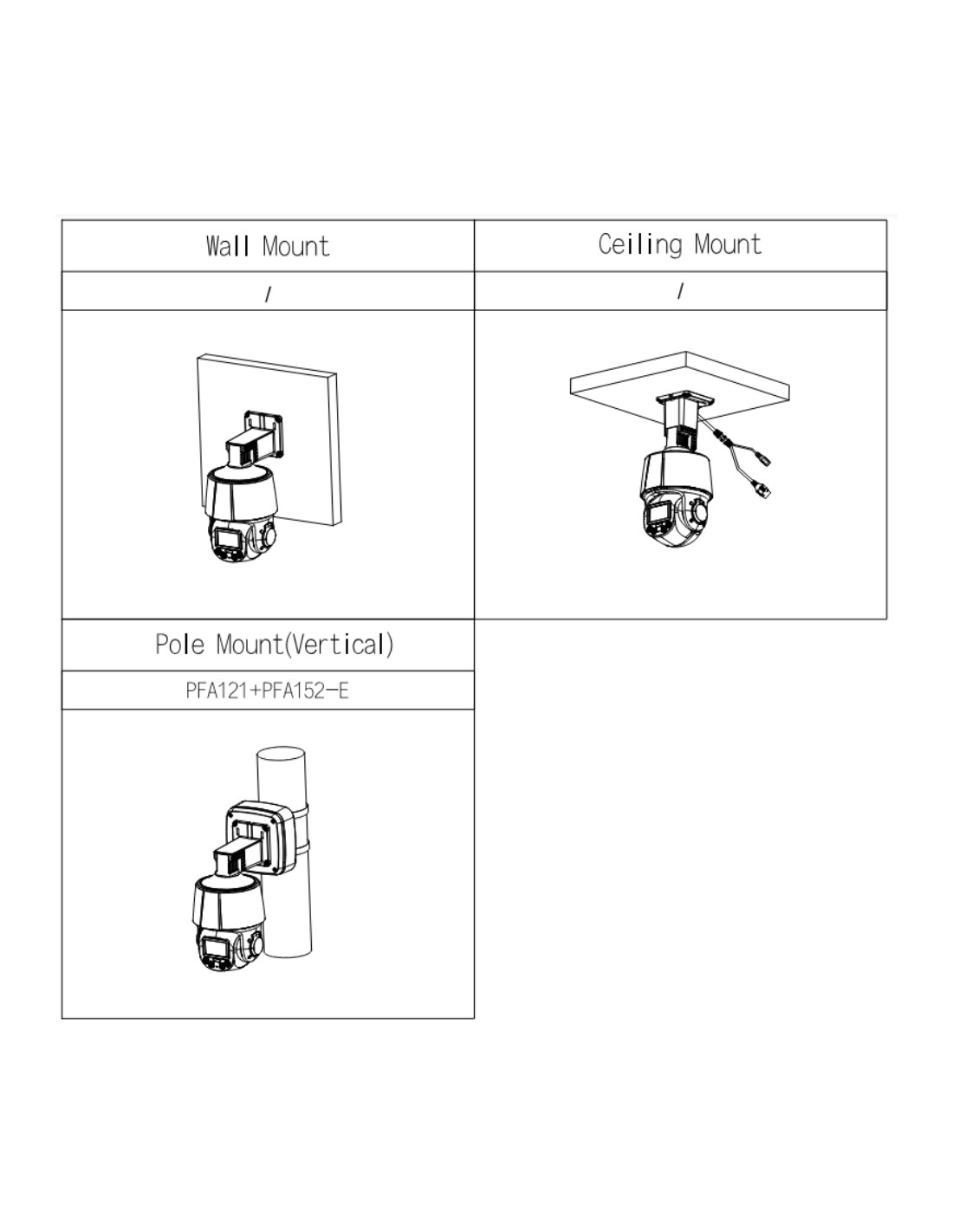

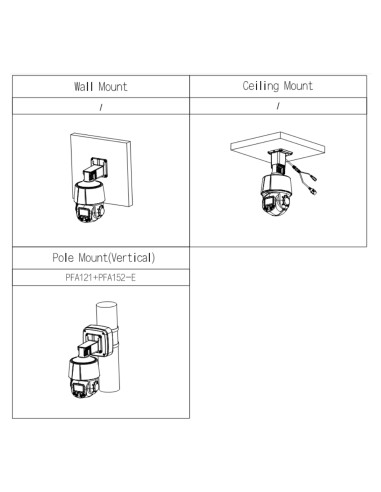

- Mounting type: Ceiling/Wall/Pole
- Product colour: White
- International Protection (IP) code: IP66
- IK code: IK10
- Fog proof: Yes
- Camera pan control: Yes
- Camera tilt control: Yes
- Minimum illumination: 0.0005 lx
- Lens viewing angle, horizontal: 90.3 - 29.4°
- Lens viewing angle, vertical: 48.5 - 16.6°
- Lens viewing angle, diagonal: 105.7 - 33.6°
- Tilt angle range: 0 - 90°
- Tilt preset speed: 60 °/sec
- Tilt manual speed: 0.1 - 60 °/sec
- Pan range: 0 - 355°
- Pan preset speed: 100 °/sec
- Pan manual speed: 0.1 - 100 °/sec
- White balance: ATW, Auto, Indoor, Manual, Natural, Outdoor, Sodium lamp, Street lamp
- Camera shutter speed: 1 - 1/30000 s
- Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
- Progressive scan: Yes
- Sensor type: CMOS
- Zoom capability: Yes
- Optical zoom: 4x
- Digital zoom: 16x
- Number of lenses: 1
- Detect distance: 240 m
- Observe distance: 94.8 m
- Recognize distance: 48 m
- Focal length range: 2.8 - 12 mm
- Auto focus: Yes
- Maximum aperture number: 3
- Identify distance: 24 m
- Minimum aperture number: 1.6
- Closest focusing distance: 1.5 m
- Night vision: Yes
- LED type: IR
- Maximum resolution: 2560 x 1440 pixels
- Total megapixels: 4 MP
- Video compression formats: H.264, H.264+, H.264B, H.264H, H.265, H.265+, M-JPEG
- Supported graphics resolutions: 352 x 288, 640 x 480 (VGA), 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2304 x 1296, 2560 x 1440
- Video streaming: Yes
- Noise reduction: Yes
- Noise reduction technology: 2D noise reduction, 3D noise reduction
- Gain control type: Auto/Manual
- Image stabilizer: Yes
- Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
- Bit rate: H.264: 2816Kbps – 13056Kbps; H.265: 1024Kbps – 7936Kbps
- Back Light Compensation (BLC): Yes
- Highlight Compensation (HLC): Yes
- Digital Wide Dynamic Range (DWDR): Yes
- Region of Interest (ROI) encoding: Yes
- Signal-to-Noise Ratio (SNR): 55 dB
- Ethernet LAN: Yes
- Ethernet interface type: Fast Ethernet
- Supported network protocols: HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; SSL; Qos; FTP; UPnP; ICMP; SNMP; IGMP; ARP; RTCP; RTP; PPPoE; RTMP; Bonjour; SAMBA; NFS
- Wi-Fi: No
- Bluetooth: No
- Number of users: 20 user(s)
- Quality of Service (QoS) support: Yes
- Streaming method: Multicast, Unicast
- Built-in HDD: No
- Card reader integrated: Yes
- Compatible memory cards: MicroSD (TransFlash)
- Maximum memory card size: 512 GB
- ROM capacity: 128 MB
- RAM capacity: 512 MB
- Ethernet LAN (RJ-45) ports: 1
- Video motion detection: Yes
- Active tampering alarm: Yes
- Intelligent Video Surveillance (IVS) system features: Abandoned object, Crossing line, Face detection, Intrusion, Missing object, Moving object, Tripwire, Vehicle detection
- Web-based management: Yes
- Web browser: Yes
- Power source type: DC, PoE
- Power consumption (typical): 2.3 W
- Power consumption (max): 6.1 W
- DC output voltage: 12
- DC output current: 1 A
- Operating temperature (T-T): -30 - 60 °C
- Storage temperature (T-T): -30 - 60 °C
- Operating relative humidity (H-H): 0 - 95%
- Storage relative humidity (H-H): 0 - 95%

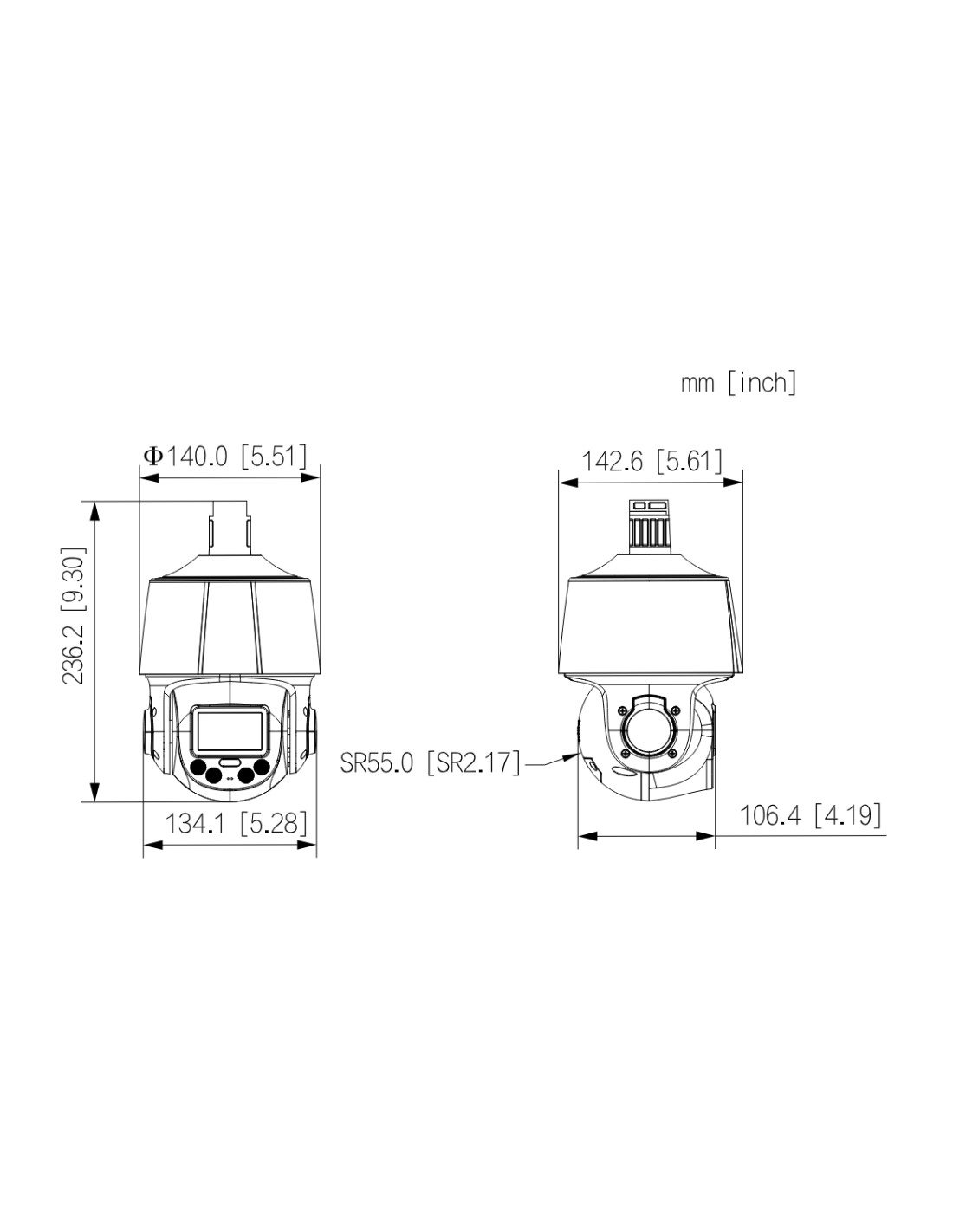

- Height: 89 mm
- Diameter: 12.2 cm
- Weight: 500 g
- Package weight: 700 g
- Number of cameras: 1
