Nuevo

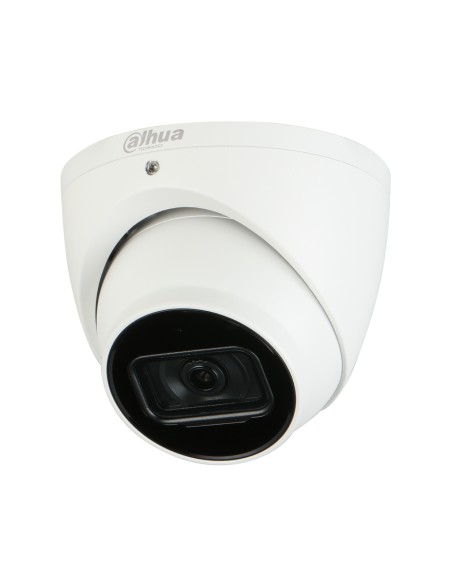

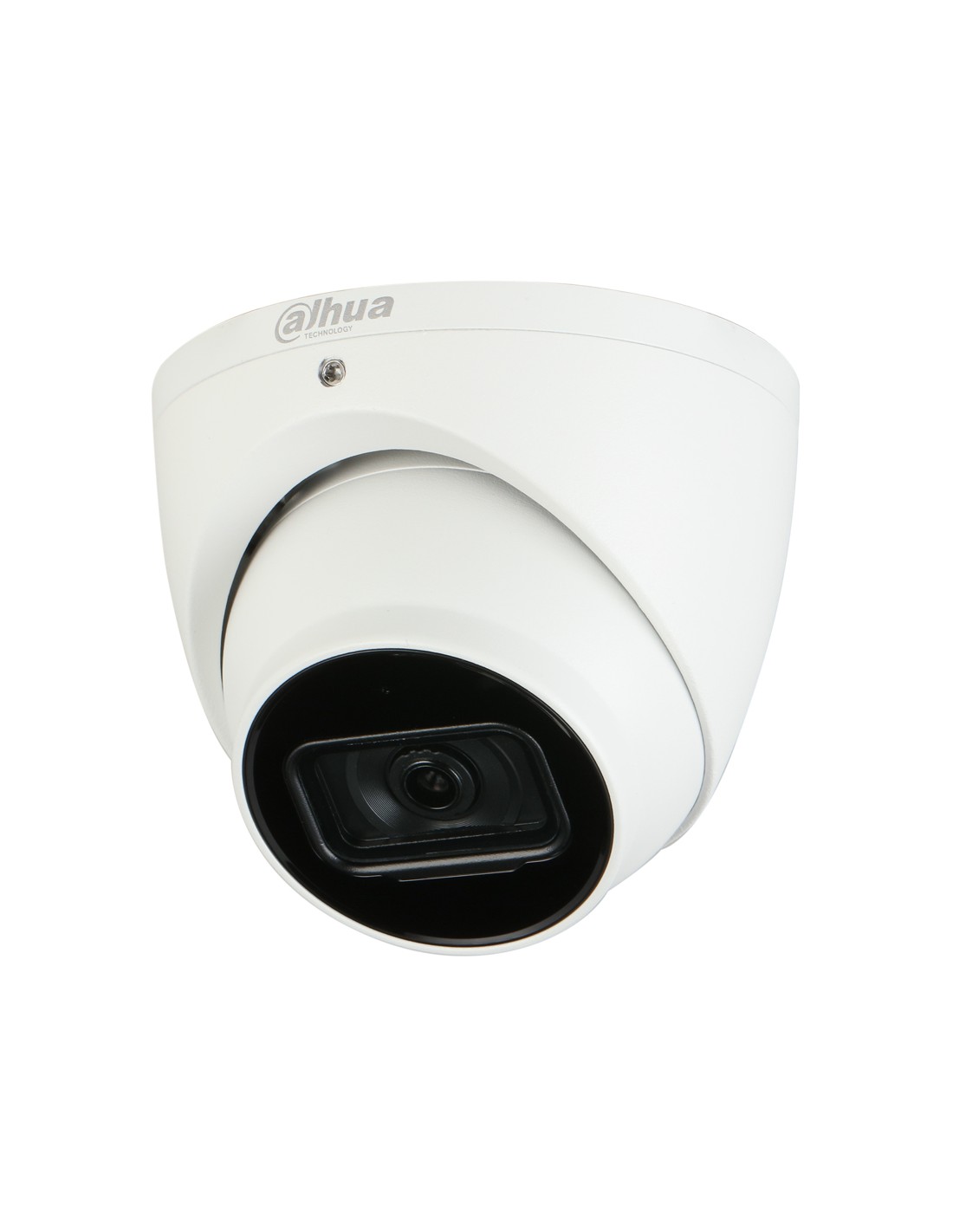

MiniDomo IP H265 AI 8M 4K DN SMART WDR Starlight IVS SMD IR30m 2.8mm IP67 IK10 PoE MIC

Marca: DAHUA

Referencia DHI-IPC-HDW3841EM-AS

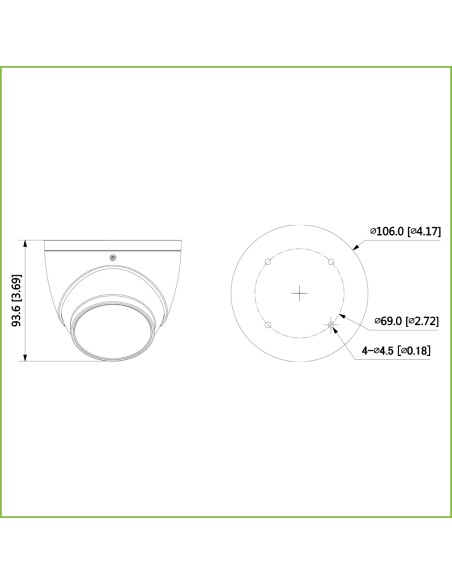

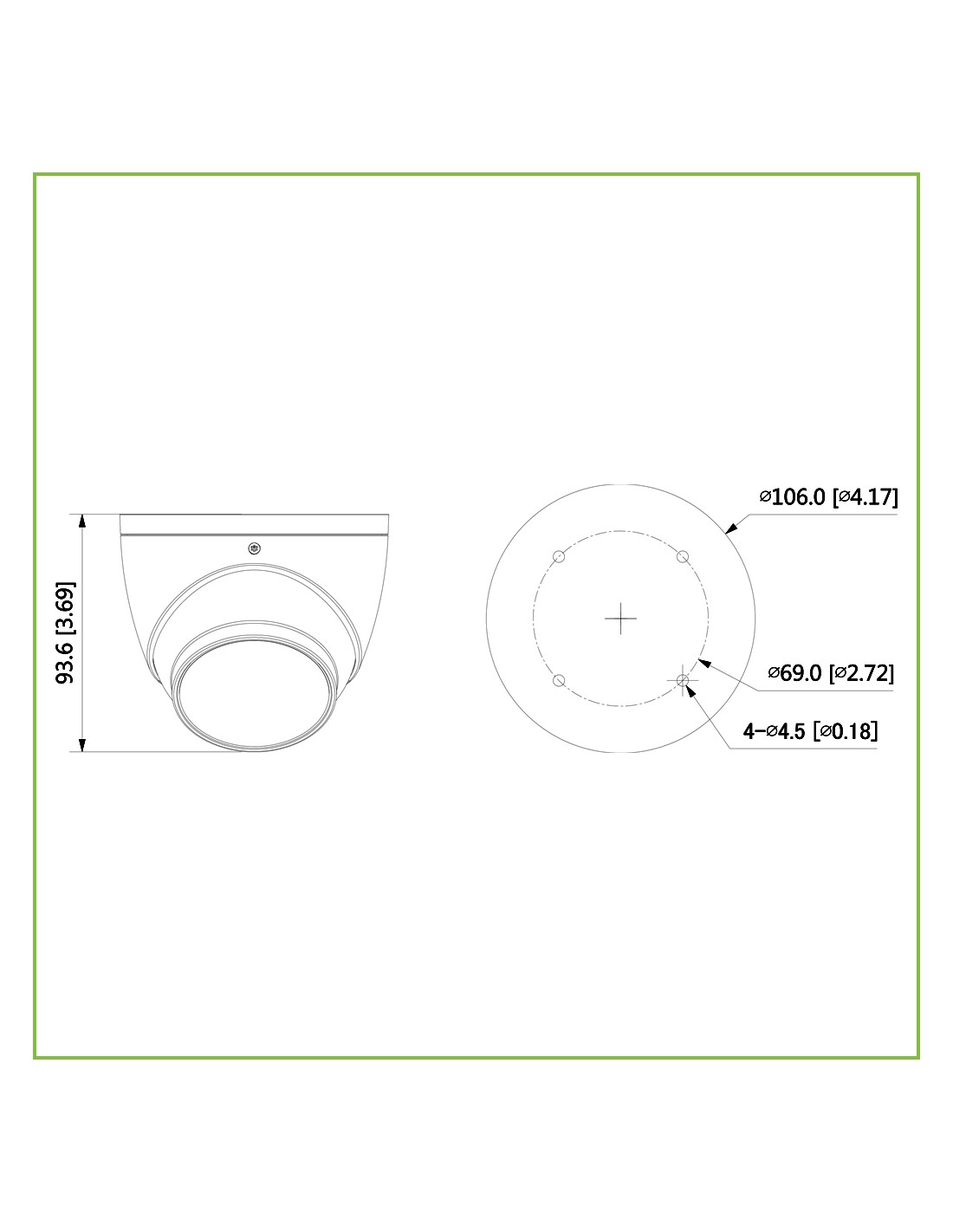

- Resolución hasta 8MP@17IPS (AI activo), 8MP@25IPS (AI desactivado). - Óptica motorizada 2.8mm (108º;x58º;-17º;x127º;(horizontalxverticalxdiagonal)), F1.4. - 3 Streams simultáneos hasta 20 usuarios. - Alimentación PoE y 12Vdc (2.6W (12Vdc) 3.3W (PoE)). Tecnología Starlight. - Audio Compression: G.711a G.711Mu G726. Micro Integrado. - Dimensiones y peso: ?106x93.6mm / 0.80Kg. * AI Series: Perimeter Protection, Intelligent Search, SMD Plus.

Descripción

Dahua Technology WizSense DH-IPC-HDW3841EMP-AS. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Angle of rotation: 360°, Lens viewing angle, horizontal: 108°, Lens viewing angle, vertical: 58°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Focal length range: 2.8 mm, Detect distance (wide): 85.5 m, Observe distance (wide): 34.2 m

Performance

Type: IP security camera
Placement supported: Indoor
Connectivity technology: Wired
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Certification: CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Design

Form factor: Dome
Mounting type: Ceiling
Product colour: Black, White
Housing material: Metal
International Protection (IP) code: IP67

Camera

Minimum illumination: 0 lx
Angle of rotation: 360°
Lens viewing angle, horizontal: 108°
Lens viewing angle, vertical: 58°
Lens viewing angle, diagonal: 127°
Tilt angle range: 0 - 78°
Pan range: 0 - 360°
White balance: Auto, Manual, Natural, Outdoor, Street lamp
Camera shutter type: Electronic
Camera shutter speed: 1/3 - 1/100000 s
Adjustment shutter speed: Auto/Manual

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Progressive scan: Yes
Sensor type: CMOS

Lens system

Number of lenses: 1
Focal length range: 2.8 mm
Maximum aperture number: 1.4
Detect distance (wide): 85.5 m
Observe distance (wide): 34.2 m
Recognize distance (wide): 17.1 m
Identify distance (wide): 8.6 m
Closest focusing distance: 1.4 m

Night vision

Night vision: Yes
Night vision distance: 30 m
LED type: IR
Number of illumination LEDs: 2

Video

Maximum resolution: 3840 x 2160 pixels
Total megapixels: 8 MP
Video formats supported: H.264, H.264+, H.264B, H.265, H.265+
Supported graphics resolutions: 352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2304 x 1296, 2592 x 1944, 2688 x 1512, 3072 x 1728, 3072 x 2048, 3840 x 2160
Video streaming: Yes
Noise reduction: Yes
Noise reduction technology: 3D noise reduction
Gain control type: Auto/Manual
Privacy masking: Yes
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate: 3 Kbps - 8192 Kbps
Back Light Compensation (BLC): Yes
Highlight Compensation (HLC): Yes
Region of Interest (ROI) encoding: Yes
Smart IR: Yes

Audio

Audio formats supported: G.711 A-law, G.726
Signal-to-Noise Ratio (SNR): 56 dB
Built-in microphone: Yes

Network

Ethernet LAN: Yes
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.3af
Supported network protocols: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Wi-Fi: No
Bluetooth: No
Number of users: 20 user(s)
Client interoperability: ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec
