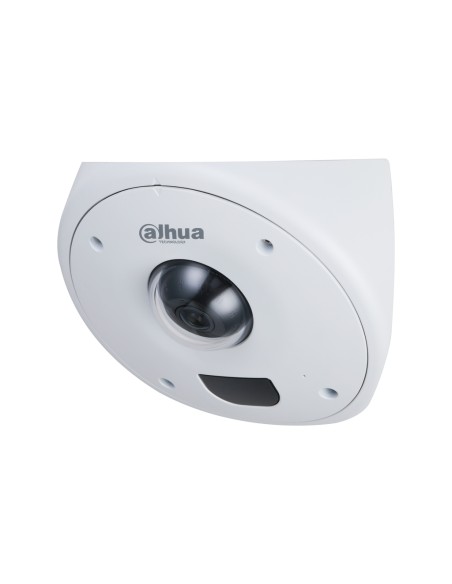

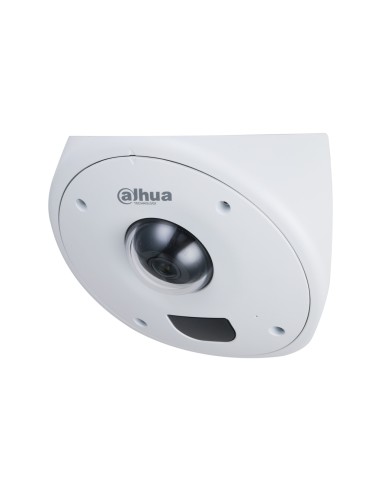

Dahua Technology WizMind IPC-EW5541P-AS. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Housing material: Metal, Plastic. Minimum illumination: 0.006 lx, Lens viewing angle, horizontal: 180°, Lens viewing angle, vertical: 180°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"), Number of effective pixels (H x V): 2592 x 1944 pixels. Detect distance: 28 m, Observe distance: 11.2 m, Recognize distance: 5.6 m
Performance
Performance
- Type: IP security camera
- Placement supported: Indoor & outdoor
- Connectivity technology: Wired
- Wide Dynamic Range (WDR): Yes
- Day/night mode: Yes
- Dynamic range: 120 dB
- Certification: CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
- Mounting type: Ceiling/wall
- Product colour: Black, White
- Housing material: Metal, Plastic
- Minimum illumination: 0.006 lx
- Lens viewing angle, horizontal: 180°
- Lens viewing angle, vertical: 180°
- Lens viewing angle, diagonal: 180°
- White balance: Auto, Manual, Natural, Outdoor, Street lamp
- Camera shutter speed: 1/3 -1/100000 s
- Adjustment shutter speed: Auto/Manual
- Number of sensors: 1
- Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
- Progressive scan: Yes
- Sensor type: CMOS
- Number of effective pixels (H x V): 2592 x 1944 pixels
- Number of lenses: 1
- Detect distance: 28 m
- Observe distance: 11.2 m
- Recognize distance: 5.6 m
- Focal length range: 1.4 mm
- Maximum aperture number: 2
- Identify distance: 2.8 m
- Closest focusing distance: 2 m
- Night vision: Yes
- Night vision distance: 10 m
- LED type: IR
- Number of illumination LEDs: 3
- Maximum resolution: 2592 x 1944 pixels
- Total megapixels: 5 MP
- Video formats supported: H.264+, H.265+
- Video compression formats: H.264, H.264B, H.264H, H.265
- Supported graphics resolutions: 352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1600 x 1200 (UXGA), 2048 x 1536 (QXGA), 2592 x 1944
- Supported video modes: 720p
- Frame rate: 30 fps
- Noise reduction: Yes
- Noise reduction technology: 3D noise reduction
- Privacy masking: Yes
- Bit rate control: Constant Bit Rate (CBR), Variable Bit Rate (VBR)
- Bit rate: H.264: 3 kbps–8192 kbps H.265: 3 kbps–8192 kbps
- Back Light Compensation (BLC): Yes
- Highlight Compensation (HLC): Yes
- Region of Interest (ROI) encoding: Yes
- Audio input channels: 1.0 channels
- Audio output channels: 1.0 channels
- Audio formats supported: G.726, PCM
- Signal-to-Noise Ratio (SNR): 56 dB
- Built-in microphone: Yes
- Ethernet LAN: Yes
- Supported network protocols: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP
- Number of users: 20 user(s)
- Card reader integrated: Yes
- Compatible memory cards: MicroSD (TransFlash)
- Maximum memory card size: 256 GB
- Internal memory: 512 MB
- ROM capacity: 128 MB
- Alarm input channels: 1
- Alarm output channels: 1
- Video motion detection: Yes
- Intelligent Video Surveillance (IVS) system features: Heat map, Intrusion, Tripwire
- Web browser: Yes
- Management software: Smart PSS, DSS, DMSS
- Power source type: DC, PoE
- Power consumption (typical): 3.6 W
- Power consumption (max): 7.8 W
- Power consumption (Power over Ethernet (PoE)): 4.4 W
- DC output voltage: 12
- Operating temperature (T-T): -10 - 50 °C
- Storage temperature (T-T): -40 - 60 °C
- Operating relative humidity (H-H): 0 - 95%
- Mobile operating systems supported: Android, iOS
- Height: 44.6 mm
- Diameter: 12.6 cm
- Weight: 299 g
- Package weight: 411 g
- Number of cameras: 1
