Nuevo

Domo IP H265 4M WDR140dB Deeplight IR40m 2.7-12VFM IK10 IP67 ePoE AUDIO E/S AI Color negro

Marca: DAHUA

Referencia DHI-IPC-HDBW5442E-ZE-S3-B

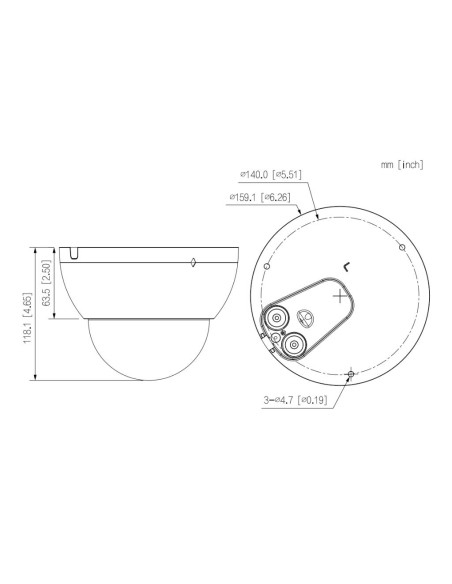

- Resolución hasta 4MP@25IPS. - Óptica motorizada 2.7-12mm (115º;-47º;x62º;-27º;x137º;-54º;), F1.8. - 4 Streams simultáneos hasta 20 usuarios (ancho de banda total: 80M). - 2E/1S Alarma, 1E/1S Audio. Micro incluido. Soporta tarjeta Micro SD de 512G. - Compatible con: ONVIF (Profile S/Profile G/Profile T) CGI. - Software de gestión: Smart PSS Lite DSS DMSS. - Dispone de tecnología de imagen AI-Powered y tiene la visión nocturna Deeplight. - Alimentación 12Vdc/24Vac y PoE/ePoE (3.6W(12Vdc) 4.3W(24Vac) 5.4W(PoE)). - Dimensiones y peso: ?159.1x118.1mm / 0.91Kg. *WizMind S Series: Perimeter Protection, Face Detection, People Counting, Smart Object Detection, SMD 3.0, AI SSA, Heat Map, Video metadata, Smart Search, Smart Sound Detection.

Descripción

Dahua Technology WizMind DH-IPC-HDBW5441F-AS-E2. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.0005 lx, Angle of rotation: 360°, Tilt angle range: 0 - 65°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Detect distance: 85.4 m, Observe distance: 34.2 m, Recognize distance: 17.1 m

Performance

Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired
PTZ control: Yes
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Certification: CE-LVD: EN 62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Design

Form factor: Dome

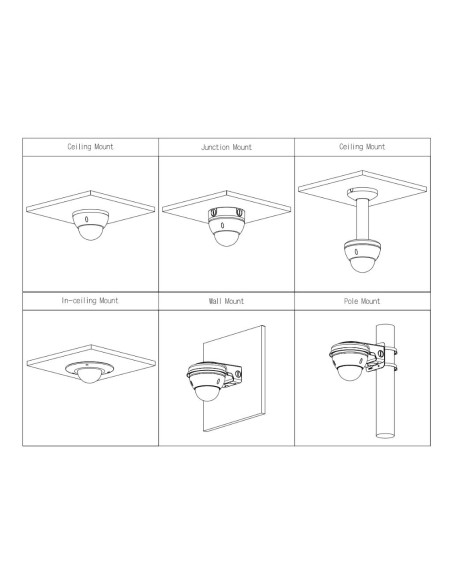

Mounting type: Ceiling
Product colour: Black, White
International Protection (IP) code: IP67
IK code: IK10

Camera

Camera pan control: Yes
Camera tilt control: Yes
Minimum illumination: 0.0005 lx
Angle of rotation: 360°
Tilt angle range: 0 - 65°
Pan range: 0 - 175°
White balance: Auto, Manual, Natural, Outdoor, Street lamp
Camera shutter type: Electronic
Camera shutter speed: 1/3 - 1/100000 s

Image sensor

Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
Progressive scan: Yes
Sensor type: CMOS

Lens system

Number of lenses: 1
Detect distance: 85.4 m
Observe distance: 34.2 m
Recognize distance: 17.1 m
Focal length range: 2.8 - 3.6 mm
Maximum aperture number: 1.6
Identify distance: 8.5 m
Closest focusing distance: 1.1 m

Video

Maximum resolution: 2560 x 1440 pixels
Total megapixels: 4 MP
Video compression formats: H.264, H.264B, H.264H, H.265, M-JPEG
Supported graphics resolutions: 342 x 240, 352 x 288, 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2304 x 1296, 2560 x 1440
Frame rate: 30 fps
Video streaming: Yes
Noise reduction: Yes
Noise reduction technology: 3D noise reduction
Gain control type: Auto
Privacy masking: Yes
Bit rate control: Constant Bit Rate (CBR), Variable Bit Rate (VBR)
Bit rate: H.264: 32 kbps–8192 kbps, H.265: 32 kbps–8192 kbps
Back Light Compensation (BLC): Yes
Highlight Compensation (HLC): Yes

Audio

Signal-to-Noise Ratio (SNR): 56 dB
Built-in microphone: Yes
Voice codecs: G.711Mu, G.711a, G.723, G.726

Network

Ethernet LAN: Yes
Ethernet interface type: Fast Ethernet
Supported network protocols: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP

Storage
