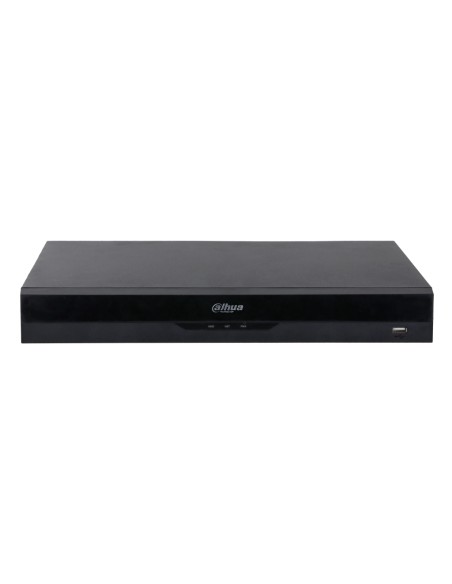

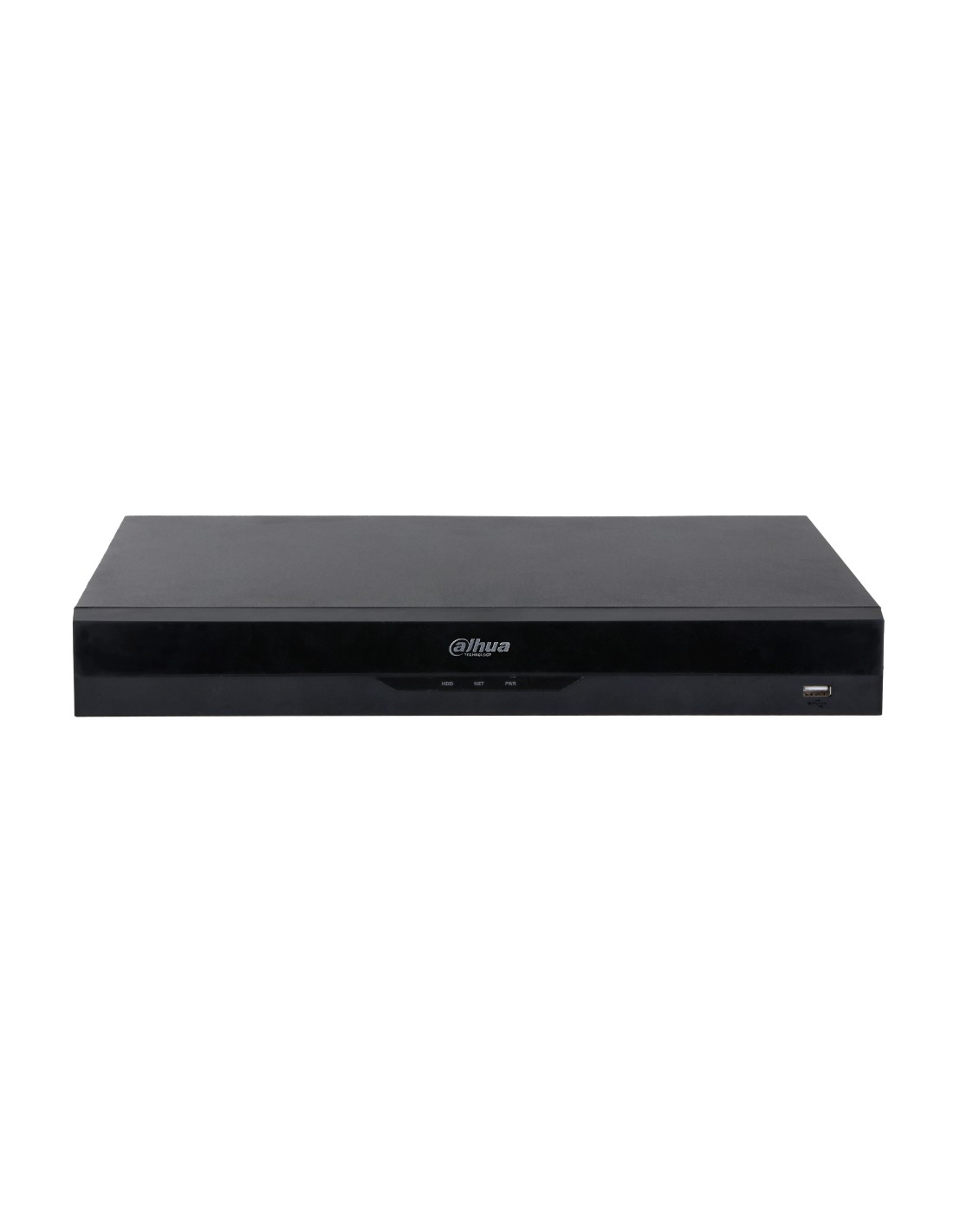

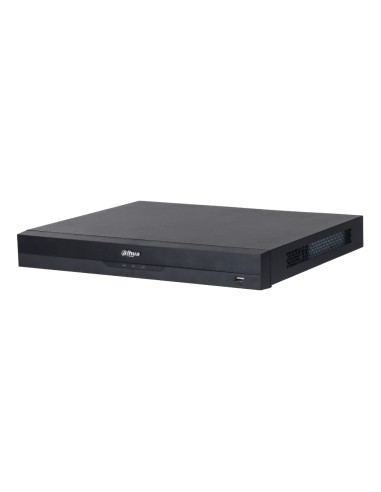

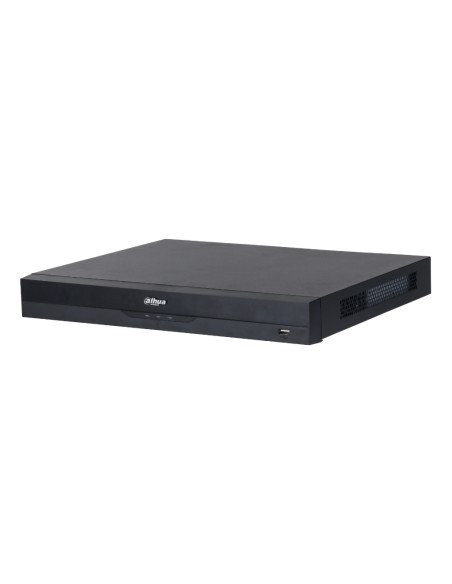

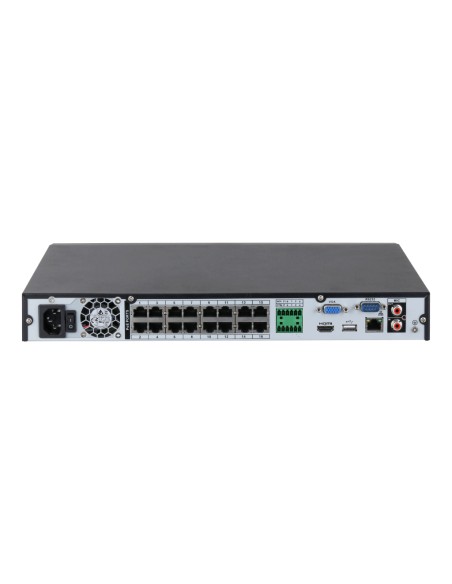

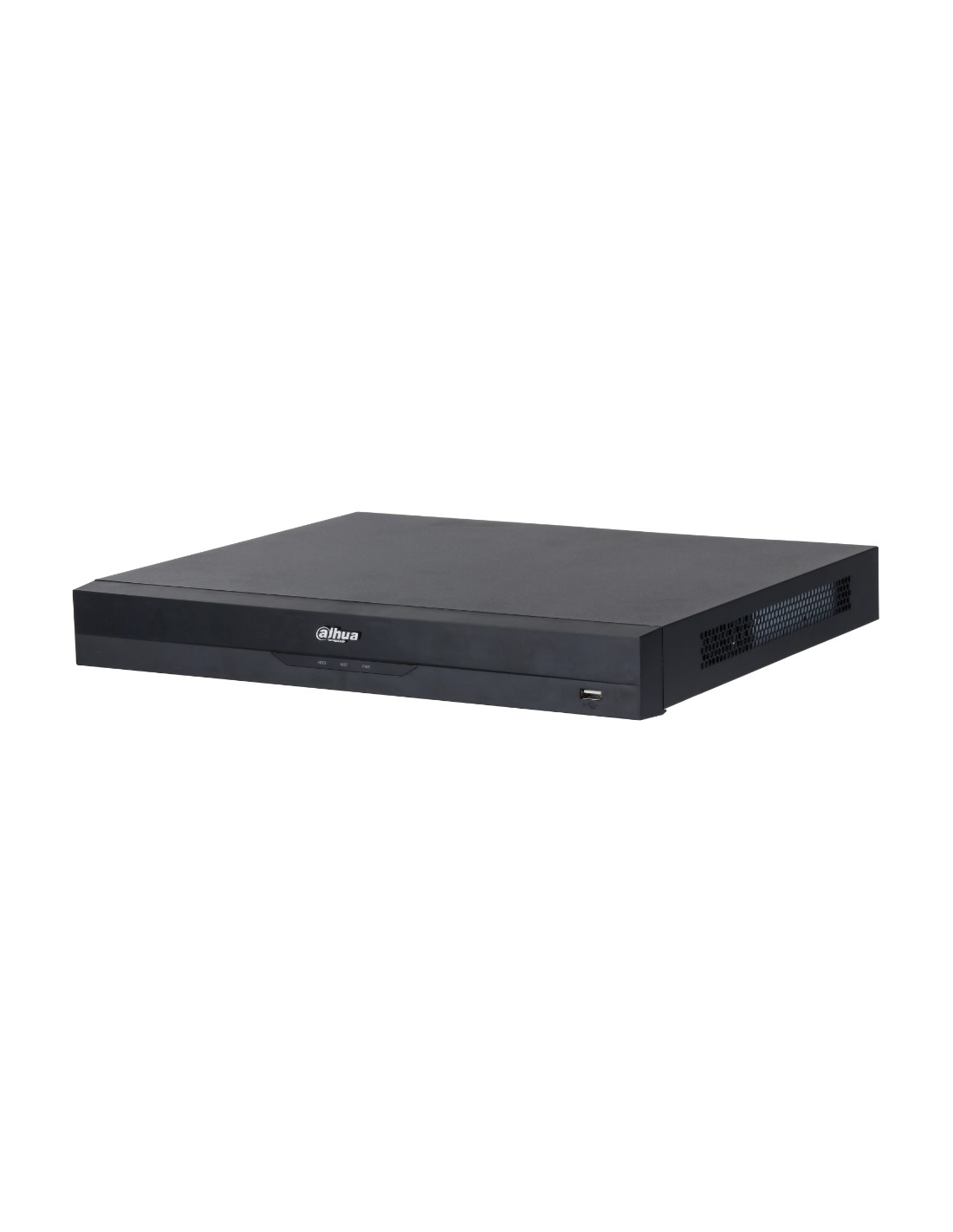

Dahua Technology Lite NVR4216-16P-EI. Video input channels: 16 channels, Maximum resolution: 1920 x 1080 pixels, Supported resolutions: 1920x1080, 1280x1024, 1280x720, 1024x768. Maximum storage capacity: 16 TB. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3af, IEEE 802.3at, Supported network protocols: HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP. Rack capacity: 1U, Brand compatibility: Any brand, Product colour: Black. Power consumption (typical): 30 W, AC input voltage: 100 - 240 V, AC input frequency: 47/63 Hz
Performance
Performance
- Video input channels: 16 channels
- Alarm input channels: 4
- Alarm output channels: 2
- Maximum resolution: 1920 x 1080 pixels
- Supported resolutions: 1920x1080, 1280x1024, 1280x720, 1024x768
- Bit rate: 8192 Kbit/s
- Number of users: 128 user(s)
- Two-way talk: Yes
- Video motion detection: Yes
- Number of motion detection zones: 396
- Video loss detection: Yes
- On Screen Display (OSD): Yes
- Video formats supported: H.264, M-JPEG
- Operating system installed: Embedded LINUX
- Backup function: Yes
- Split screen: Yes
- PTZ control: Yes
- Snapshot: Yes
- Playback modes: Backup selection, Digital zoom, Forward, Full screen, Next camera, Pause, Play, Previous camera, Repeat, Reverse, Shuffle, Speed Adjust, Stop
- Playback controls: Yes
- Recording modes: Manual, Schedule, Stop
- Recording time: 120 min
- Number of HDDs supported: 2
- Maximum storage capacity: 16 TB

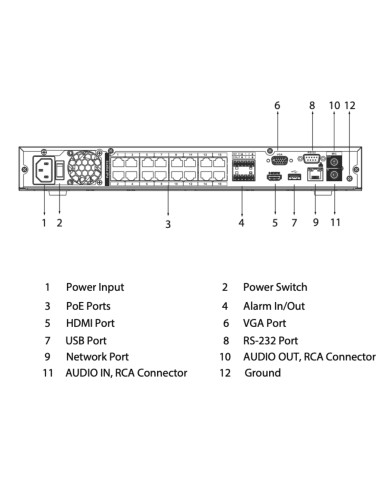

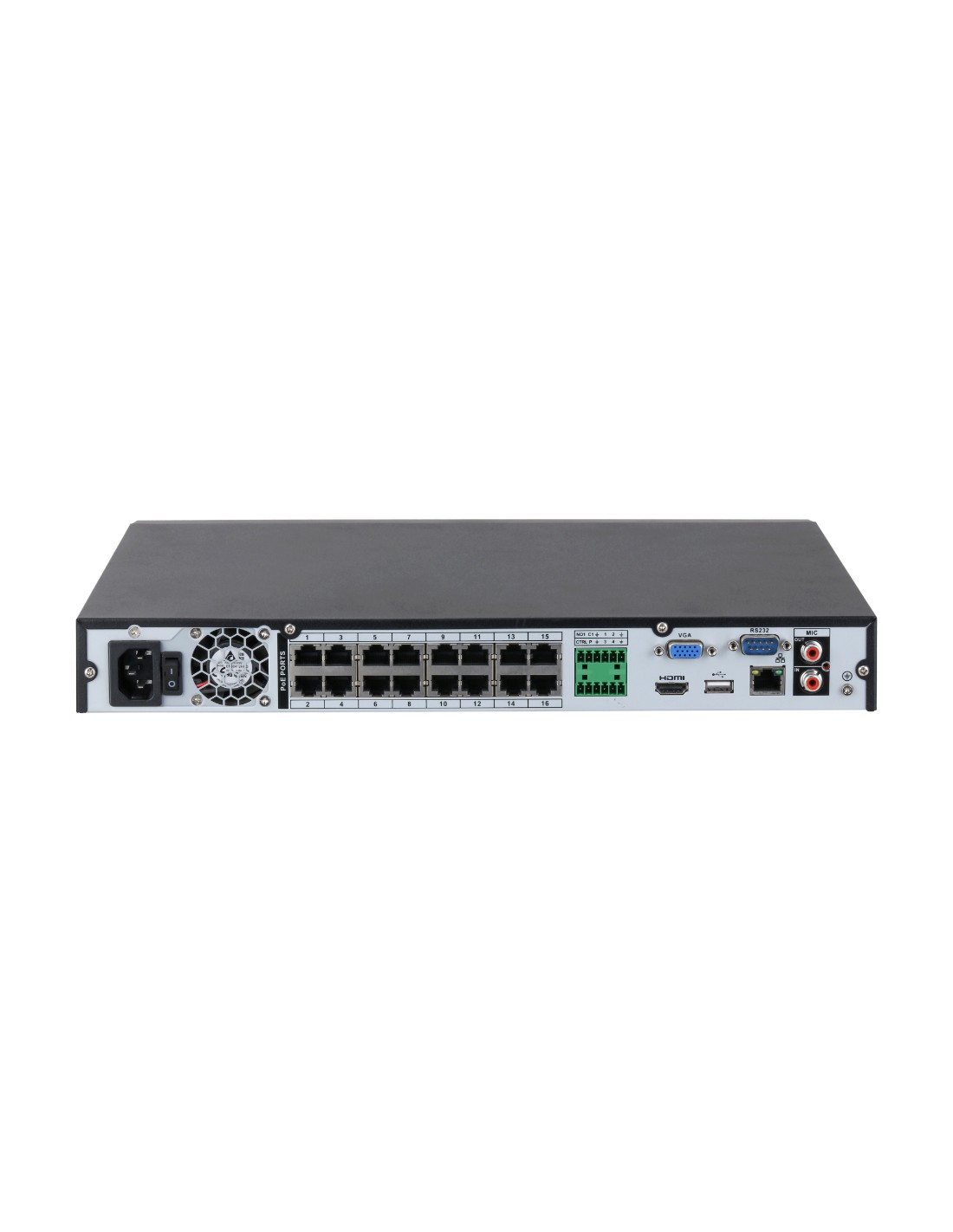

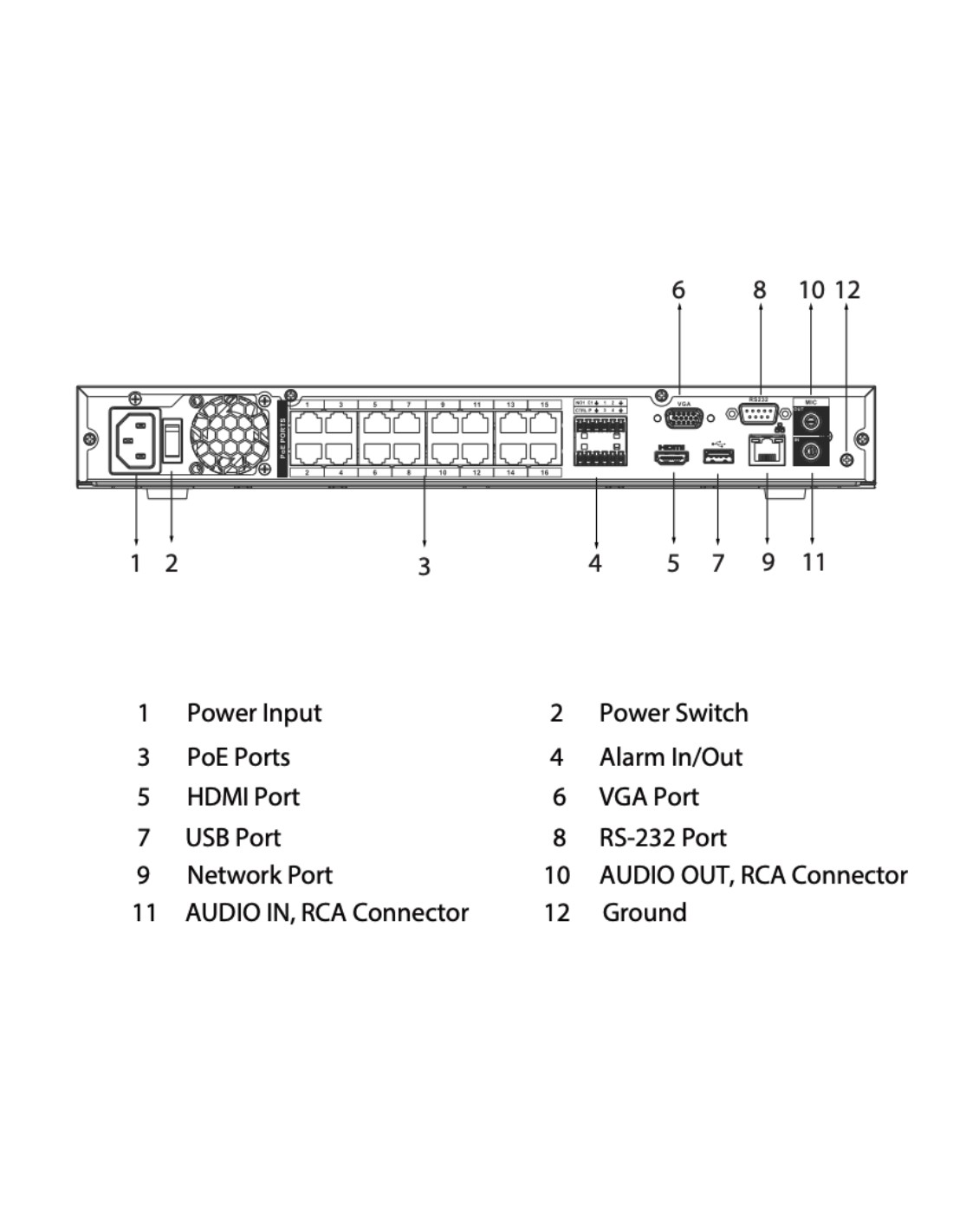

- Ethernet LAN (RJ-45) ports: 1
- Power over Ethernet (PoE): Yes
- Ethernet LAN data rates: 10,100,1000 Mbit/s
- Power over Ethernet (PoE) ports quantity: 16
- HDMI output: Yes
- HDMI ports quantity: 1
- VGA (D-Sub) output ports: 1
- USB 2.0 ports quantity: 1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
- Audio RCA inputs: 1
- Audio RCA outputs: 1
- Internal SATA ports quantity: 2
- RS-232 interface: Yes
- Networking standards: IEEE 802.3af, IEEE 802.3at
- Supported network protocols: HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP
- Rack mounting: Yes
- Rack capacity: 1U
- Brand compatibility: Any brand
- Product colour: Black
- Built-in processor: Yes
- Processor cores: 2
- Power consumption (typical): 30 W
- AC input voltage: 100 - 240 V
- AC input frequency: 47/63 Hz
- Power over Ethernet (PoE) power per port: 25.5 W
- Total Power over Ethernet (PoE) budget: 130 W
- Mobile operating systems supported: Android, iOS
- Operating temperature (T-T): -10 - 55 °C
- Operating relative humidity (H-H): 10 - 93%
- Storage temperature (T-T): -20 - 60 °C

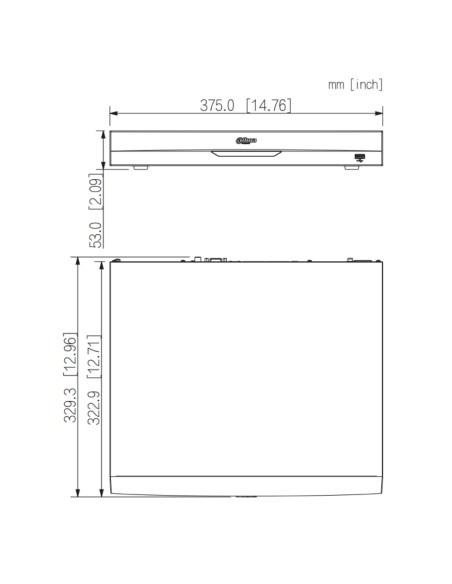

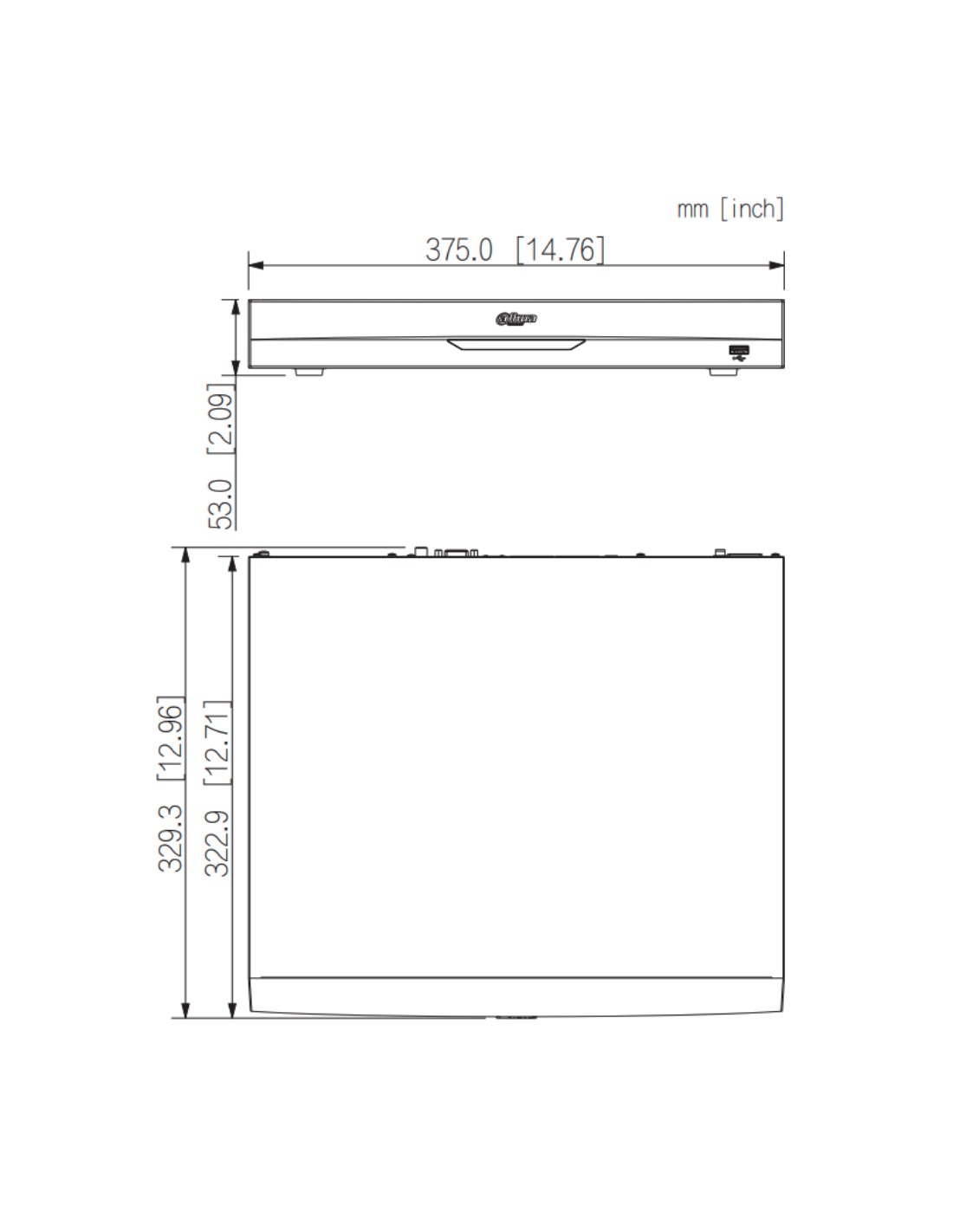

- Width: 375 mm
- Depth: 329.3 mm
- Height: 53 mm
- Weight: 2.6 kg
- Package width: 451 mm
- Package depth: 425 mm
- Package height: 147 mm
- Package weight: 3.8 kg
