Nuevo

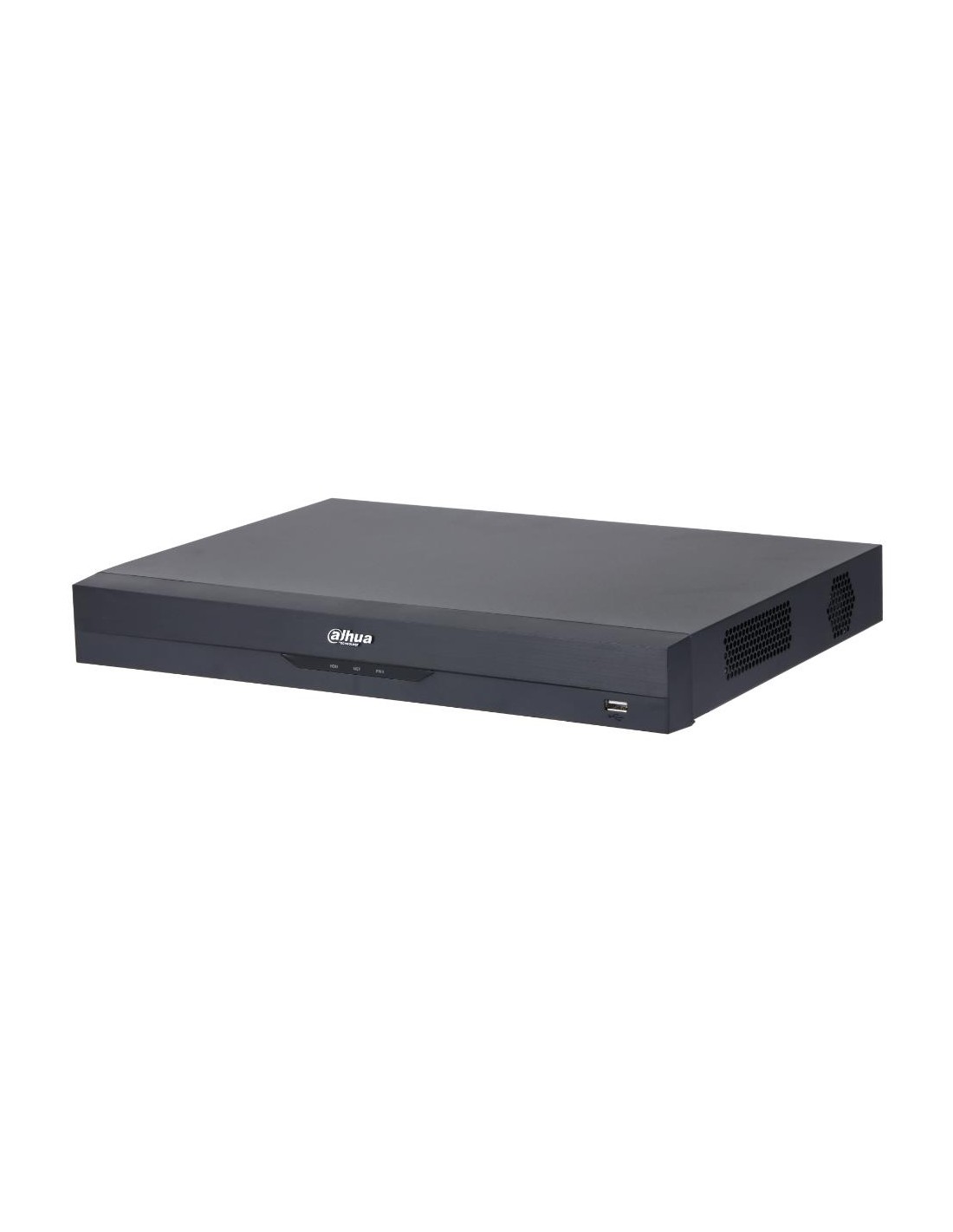

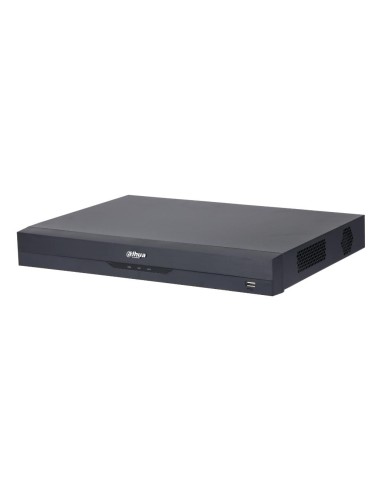

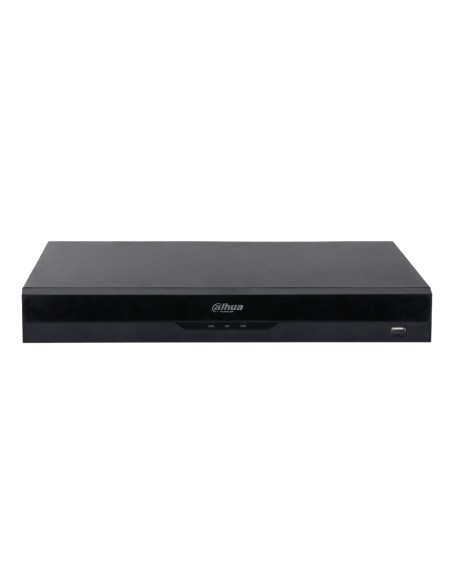

NVR 16ch 256Mbps 4K H265 HDMI 2HDD E/S AI

Marca: DAHUA

Referencia DHI-NVR4216-EI

- Ancho de banda: AI deshabilitado: 256Mbps de entrada, 256Mbps de grabación y 256Mbps de salida. AI habilitado: 180Mbps de entrada, 180Mbps de grabación y 180Mbps de salida. - Capacidad de decodificación: AI deshabilitado => 2CH-16MP@25IPS, 2CH-12MP@25IPS, 4CH-8MP@25IPS, 6CH-5MP@25IPS, 8CH-4MP@25IPS y 16CH-1080P@25IPS. AI habilitado => 1CH-16MP@25IPS, 2CH-12MP@25IPS, 3CH-8MP@25IPS, 4CH-5MP@25IPS, 6CH-4MP@25IPS y 12CH-1080P@25IPS. - Perfiles ONVIF T/S/G, CGI, SDK. - 2 Canales Perimeter Protection. Reconocimiento secundario persona/vehículo para tripwire e intrusiones. - 4 Canales SMD Plus. Búsqueda AI con clasificación de objetivos (Personas, Vehículos). - 1 Canal Face detection. Máximo 12 imágenes faciales por segundo en cada canal. - 1 Canal Face Recognition. 10 Bases de datos faciales hasta 20.000 imágenes faciales. Máximo 12 imágenes faciales por segundo en cada canal. - Alimentación 12Vdc@4A (Máx 10W (Sin HHD)). - Dimensiones y peso: 375x284.3x53mm / 1.51Kg (Sin HDD). *WizMind Series: Perimeter Protection, Face Detection, Face Recognition, SMD Plus. NOTA IMPORTANTE: Las funciones IA NO pueden ser usadas simultáneamente (SMD, reconocimiento facial, protección perimetral...).

Descripción

Dahua Technology WizSense NVR4216-EI. Video input channels: 16 channels, Maximum resolution: 1920 x 1080 pixels, Supported resolutions: 1920 x 1080 1280 x 1024 1280 x 720 1024 x 768. Maximum storage capacity: 6 TB. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3af, IEEE 802.3at, Supported network protocols: HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm.... Rack capacity: 1U, Product colour: Black, Certification: CE, FCC, UL. Power consumption (typical): 10 W, Output current: 4 A, Output voltage: 12 V

Performance

Video input channels: 16 channels
Alarm input channels: 4
Maximum resolution: 1920 x 1080 pixels
Supported resolutions: 1920 x 1080 1280 x 1024 1280 x 720 1024 x 768
Bit rate: 20000 Kbit/s
Number of users: 128 user(s)
Two-way talk: Yes
Video motion detection: Yes
Number of motion detection zones: 396
Video loss detection: Yes
Multi-screen: Yes
On Screen Display (OSD): Yes
Video formats supported: H.264, H.264+, M-JPEG
Operating system installed: Embedded LINUX
Backup function: Yes
PTZ control: Yes
Playback modes: Backup selection, Digital zoom, Forward, Next camera, Pause, Play, Previous camera, Repeat, Shuffle, Stop
Playback controls: Yes
Recording modes: Manual, Schedule
Recording time: 60 min

Hard drive

HDD capacity: 0 GB
Number of HDDs supported: 2
Maximum storage capacity: 6 TB

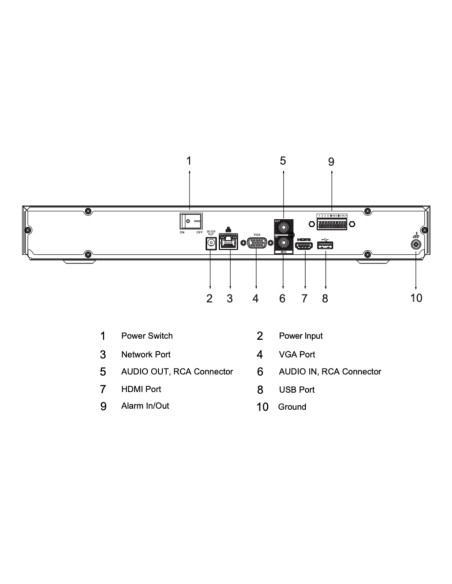

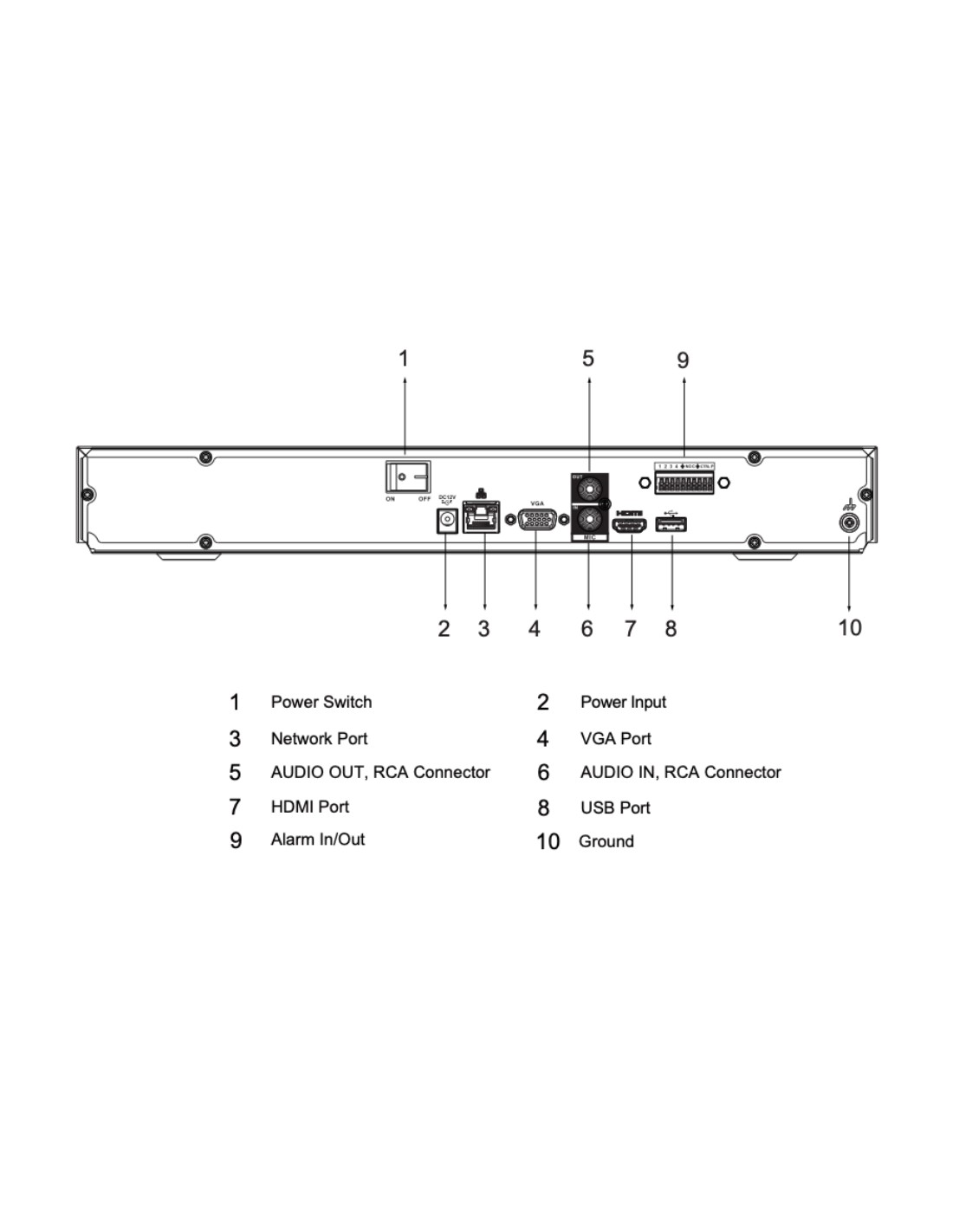

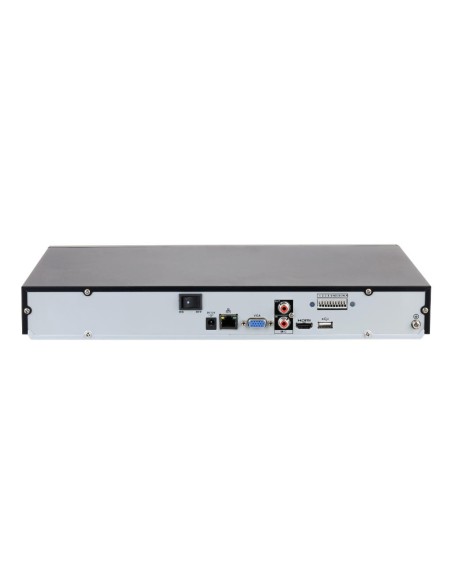

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
Power over Ethernet (PoE): No
Ethernet LAN data rates: 10,100,1000 Mbit/s
HDMI ports quantity: 1
VGA (D-Sub) output ports: 1
USB 2.0 ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
Internal SATA ports quantity: 2
RS-485 ports: 1
RS-232 interface: Yes
Networking standards: IEEE 802.3af, IEEE 802.3at
Supported network protocols: HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS

Features

Rack mounting: Yes
Rack capacity: 1U
Product colour: Black
Certification: CE, FCC, UL

Processor

Built-in processor: Yes
Processor cores: 2

Power

Power consumption (typical): 10 W
Output current: 4 A
Output voltage: 12 V

System requirements

Mobile operating systems supported: Android

Operational conditions

Operating temperature (T-T): -10 - 55 °C
Operating relative humidity (H-H): 10 - 93%
Storage temperature (T-T): -20 - 60 °C

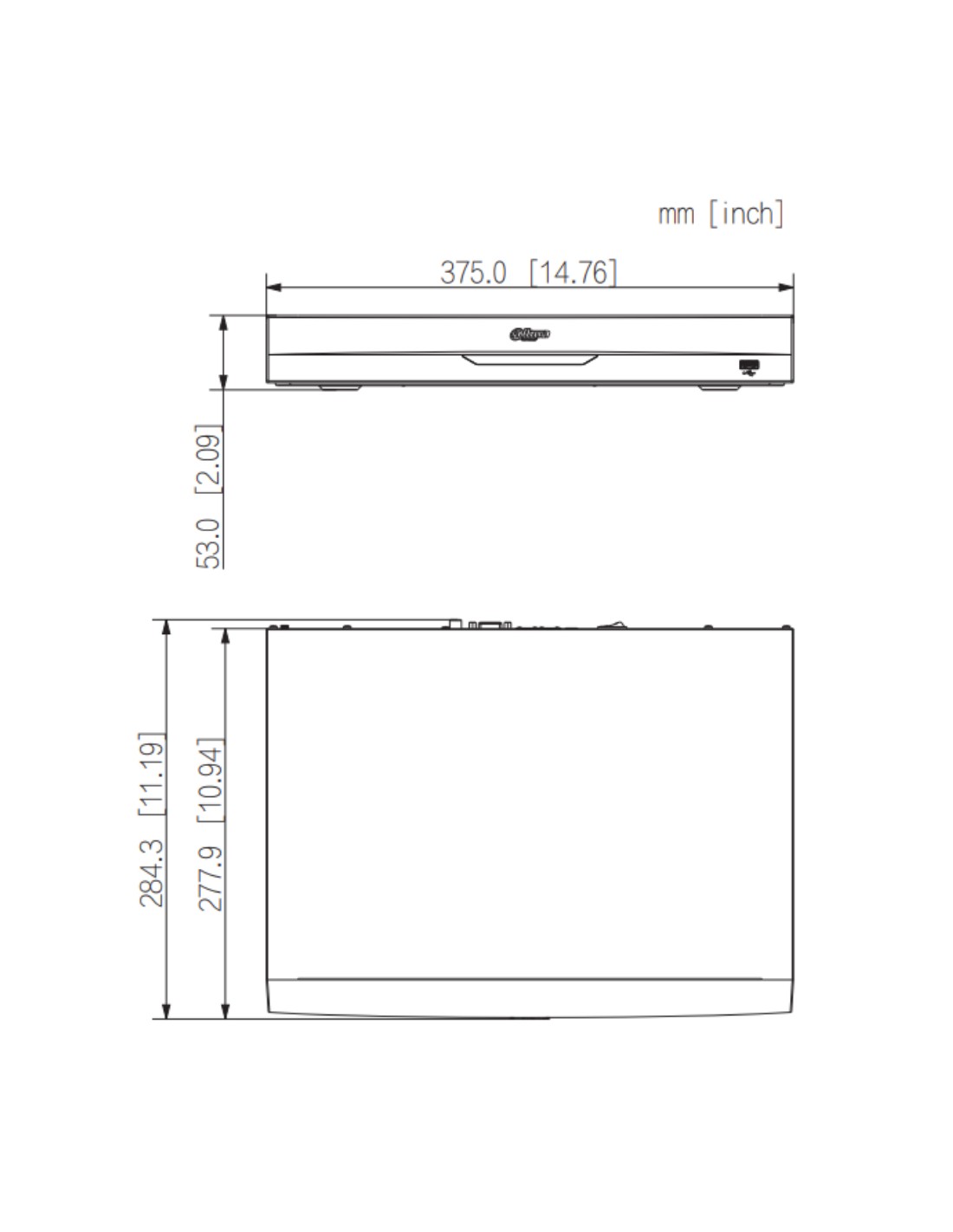

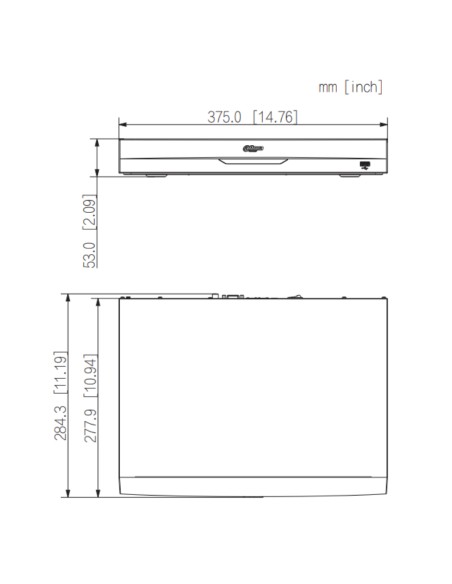

Weight & dimensions

Width: 375 mm
Depth: 284 mm
Height: 53 mm
Weight: 1.51 kg
Package width: 433 mm
Package depth: 141 mm
Package height: 366 mm
Package weight: 2.76 kg

Adjuntos:

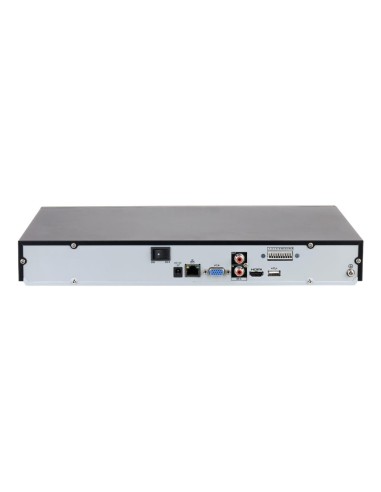

NVR 16ch 256Mbps 4K H265 HDMI 2HDD E/S AI
