Nuevo

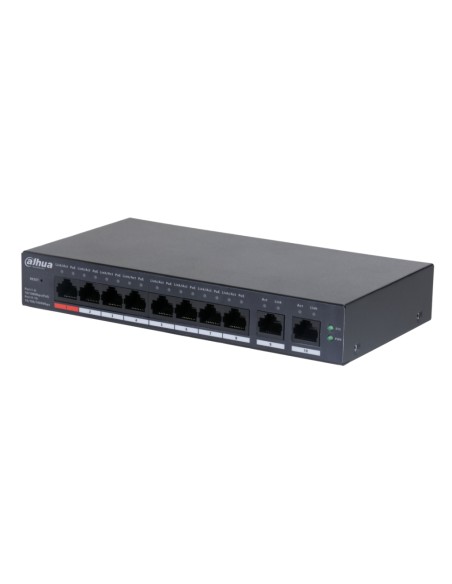

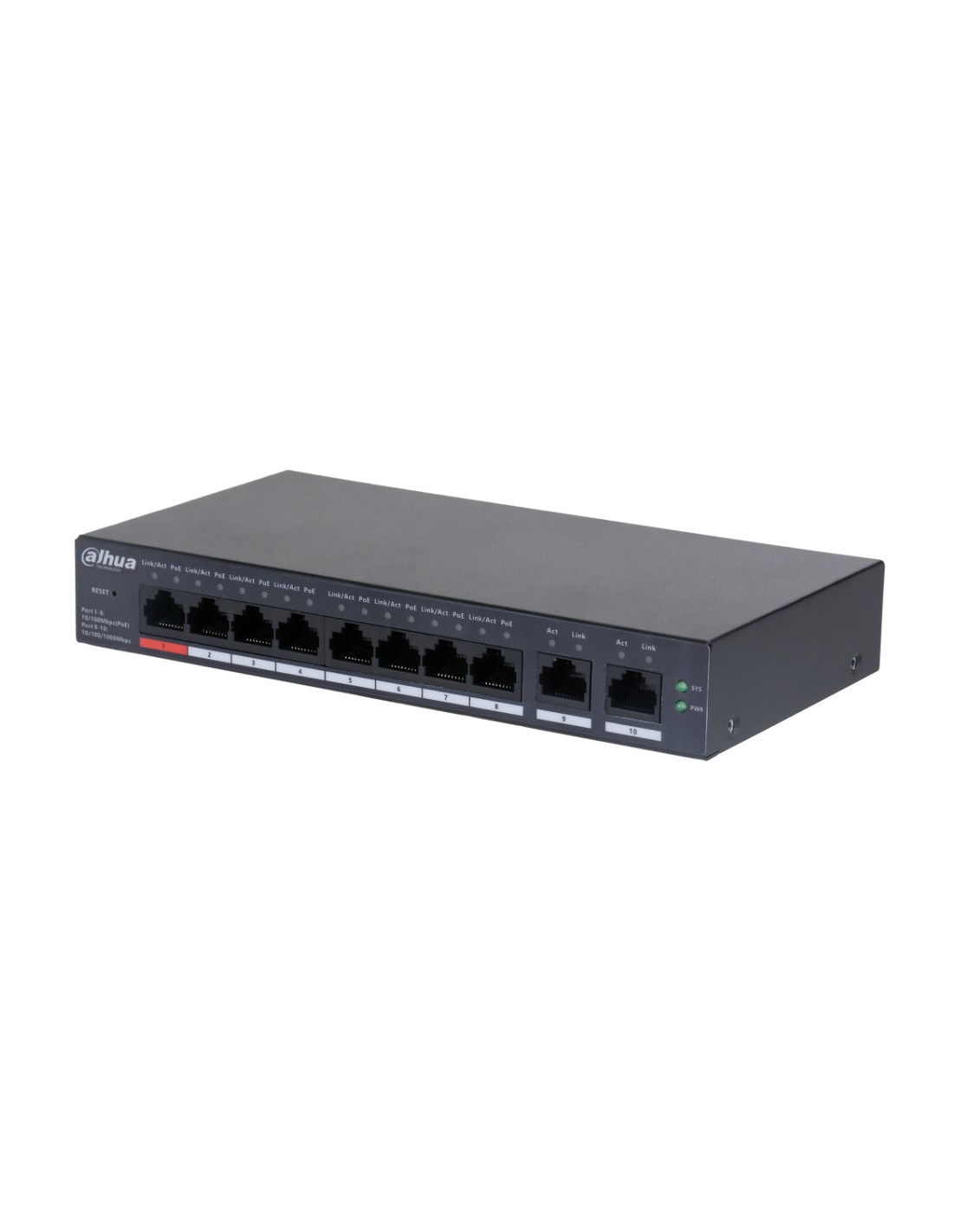

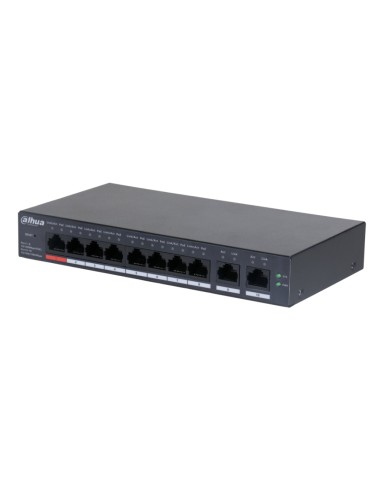

Switch PoE 8 puertos 10/100 + 2RJ45 Uplink Gigabit 110W Gestionable en Cloud Layer2

Marca: DAHUA

Referencia DHI-CS4010-8ET-110

- Switch PoE capa 2. - Soporta estándar IEEE802.3af, IEEE802.3at, Hi-PoE, IEEE802.3bt. - Cumple con IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab. - PoE Watchdog, monitorea en tiempo real el estado del dispositivo. - 1 botón de reinicio. - Puertos 1-8: 8xRJ45 10/100Mbps (PoE). - Puertos 9-10: 2xRJ45 10/100/1000Mbps (Uplink). - Puerto 1 ?90W, Puertos 2-8 ?30W, total ?110W. - BT 90W (Puerto rojo) => Los puertos rojos son compatibles con los estándares IEEE802.3af, IEEE802.3at, IEEE802.3bt y HiPoE, con un consumo máximo de potencia de salida de 90W por puerto. Adecuados para alimentar dispositivos de alta potencia. - Consumo de energía: En reposo: 3W / Carga completa: 110W. - Temperatura de trabajo: -10°C ~ +55°C. - Cloud Management: Gestión en la nube a través de la aplicación DoLynk Care. - Dimensiones y peso: 190x106x30mm / 0.5Kg. *Alimentador incluido.

Descripción

Dahua Technology DH-CS4010-8ET-110. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 8000 entries, Switching capacity: 5.6 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x. DC input voltage: 54 V. Power over Ethernet (PoE)

Management features

Switch type: Managed
Switch layer: L2
Quality of Service (QoS) support: Yes
Web-based management: Yes
Cloud-managed: Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity: 8
Gigabit Ethernet (copper) ports quantity: 2

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x
10G support: No
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Flow control support: Yes
Ethernet LAN data rates: 10,100,1000 Mbit/s
VLAN support: Yes
Virtual LAN features: Port-based VLAN
Number of VLANs: 32

Data transmission

Switching capacity: 5.6 Gbit/s
Forwarding rate: 4.17 Mpps
MAC address table: 8000 entries
Jumbo frames support: Yes
Jumbo frames: 9216
Packet buffer memory: 0.5 MB

Security

DHCP features: DHCP client

Design

Rack mounting: No
Product colour: Black
Housing material: Metal
Reset button: Yes
LED indicators: Yes

Power

Power source: DC/PoE
Power supply included: Yes
Redundant power supply (RPS) support: Yes
DC input voltage: 54 V
Input current: 2.22 A
Power consumption (max): 110 W

Power over Ethernet (PoE)

Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) ports quantity: 8

Operational conditions

Operating temperature (T-T): -10 - 55 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 5 - 95%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 190 mm
Depth: 106 mm
Height: 30 mm
Weight: 500 g

Packaging data

Package width: 256 mm
Package depth: 244 mm
Package height: 87 mm
Package weight: 1.25 kg

Sustainability

Sustainability compliance: Yes

Certificates

Compliance certificates: CE
