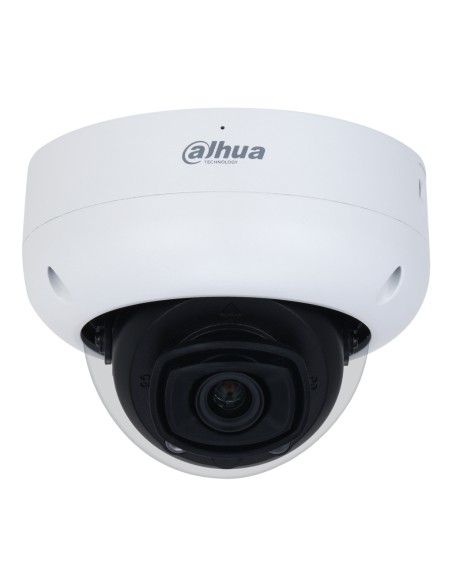

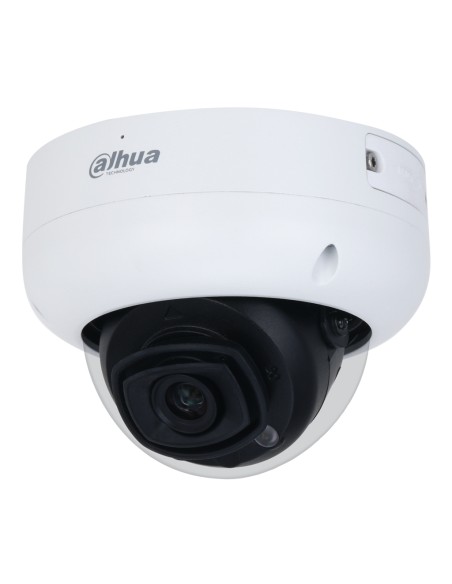

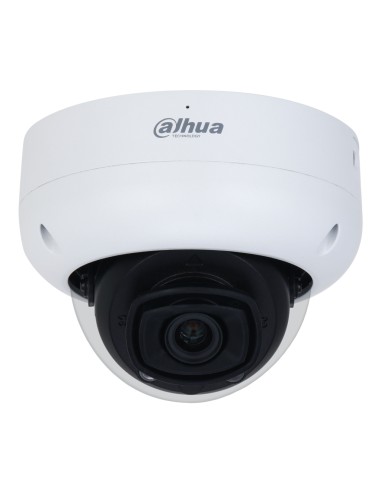

Dahua Technology WizMind IPC-HDBW5449RP-ASE-LED-0280B. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Bullet. Minimum illumination: 0.0005 lx, Angle of rotation: 355°, Lens viewing angle, horizontal: 115 - 48°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"), Number of effective pixels (H x V): 2688 x 1520 pixels. Focal length range: 2.7 - 12 mm, Focus: Motorized, Detect distance (wide): 60.4 m
Performance
Performance
- Type: IP security camera
- Placement supported: Indoor & outdoor
- Connectivity technology: Wired
- Day/night mode: Yes
- Dynamic range: 140 dB
- Certification: CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-
- Form factor: Bullet

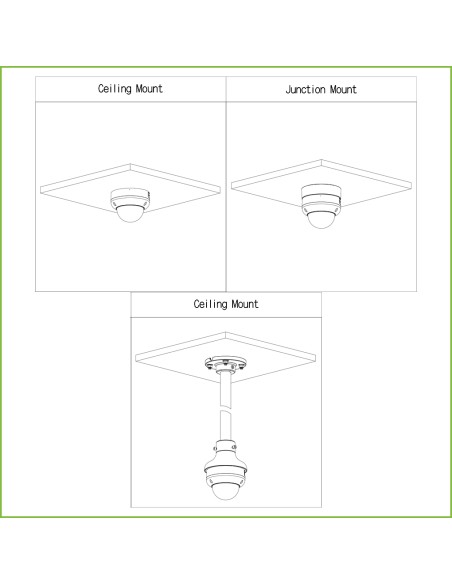

- Mounting type: Ceiling
- Product colour: White
- Housing material: Metal
- International Protection (IP) code: IP67
- IK code: IK10
- Minimum illumination: 0.0005 lx
- Angle of rotation: 355°
- Lens viewing angle, horizontal: 115 - 48°
- Lens viewing angle, vertical: 59 - 27°
- Lens viewing angle, diagonal: 142 - 55°
- Tilt angle range: 0 - 80°
- Pan range: 0 - 355°
- White balance: Auto, Manual, Natural, Outdoor, Street lamp
- Camera shutter speed: 1/3 – 1/100000
- Optical sensor size: 25.4 / 1.8 mm (1 / 1.8")
- Progressive scan: Yes
- Sensor type: CMOS
- Number of effective pixels (H x V): 2688 x 1520 pixels
- Number of lenses: 1
- Focal length range: 2.7 - 12 mm
- Focus: Motorized
- Maximum aperture number: 2.8
- Detect distance (wide): 60.4 m
- Detect distance (tele): 128.6 m
- Observe distance (wide): 24.1 m
- Observe distance (tele): 51.4 m
- Recognize distance (wide): 12 m
- Recognize distance (tele): 27.5 m
- Identify distance (wide): 6 m
- Identify distance (tele): 12.8 m
- Closest focusing distance: 1.75 m
- Night vision: Yes
- Night vision distance: 40 m
- LED type: IR
- Number of illumination LEDs: 3
- Maximum resolution: 2688 x 1520 pixels
- Total megapixels: 4 MP
- Video formats supported: H.264+, H.265+
- Video compression formats: H.264, H.264B, H.264H, H.265
- Supported graphics resolutions: 352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2304 x 1296, 2560 x 1440, 2688 x 1520
- Supported video modes: 720p, 1080p
- Frame rate: 60 fps
- Noise reduction: Yes
- Noise reduction technology: 3D noise reduction
- Gain control type: Auto/Manual
- Privacy masking: Yes
- Bit rate control: Constant Bit Rate (CBR), Variable Bit Rate (VBR)
- Bit rate: H.264: 3 kbps–20480 kbps H.265: 3 kbps–20480 kbps
- Back Light Compensation (BLC): Yes
- Highlight Compensation (HLC): Yes
- Region of Interest (ROI) encoding: Yes
- Audio input channels: 1.0 channels
- Audio output channels: 1.0 channels
- Audio formats supported: G.711, G.723, PCM
- Signal-to-Noise Ratio (SNR): 56 dB
- Built-in microphone: Yes
- Ethernet LAN: Yes
- Supported network protocols: IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP
- Number of users: 20 user(s)
- Compatible memory cards: SD
- Maximum memory card size: 256 GB
- Internal memory: 512 MB
- ROM capacity: 128 MB
- Ethernet LAN (RJ-45) ports: 1
- Alarm input channels: 1
- Alarm output channels: 1
- Video motion detection: Yes
- Intelligent Video Surveillance (IVS) system features: Abandoned object, Heat map, Missing object
- Mirror: Yes
- Web browser: Yes
- Management software: Smart PSS;DSS;DMSS
- Power source type: DC, PoE
- Power consumption (max): 7.4 W
- Power consumption (Power over Ethernet (PoE)): 3.3 W
- DC output voltage: 12
- Operating temperature (T-T): -30 - 60 °C
- Storage temperature (T-T): -40 - 60 °C
- Operating relative humidity (H-H): 0 - 95%
- Mobile operating systems supported: Android, iOS

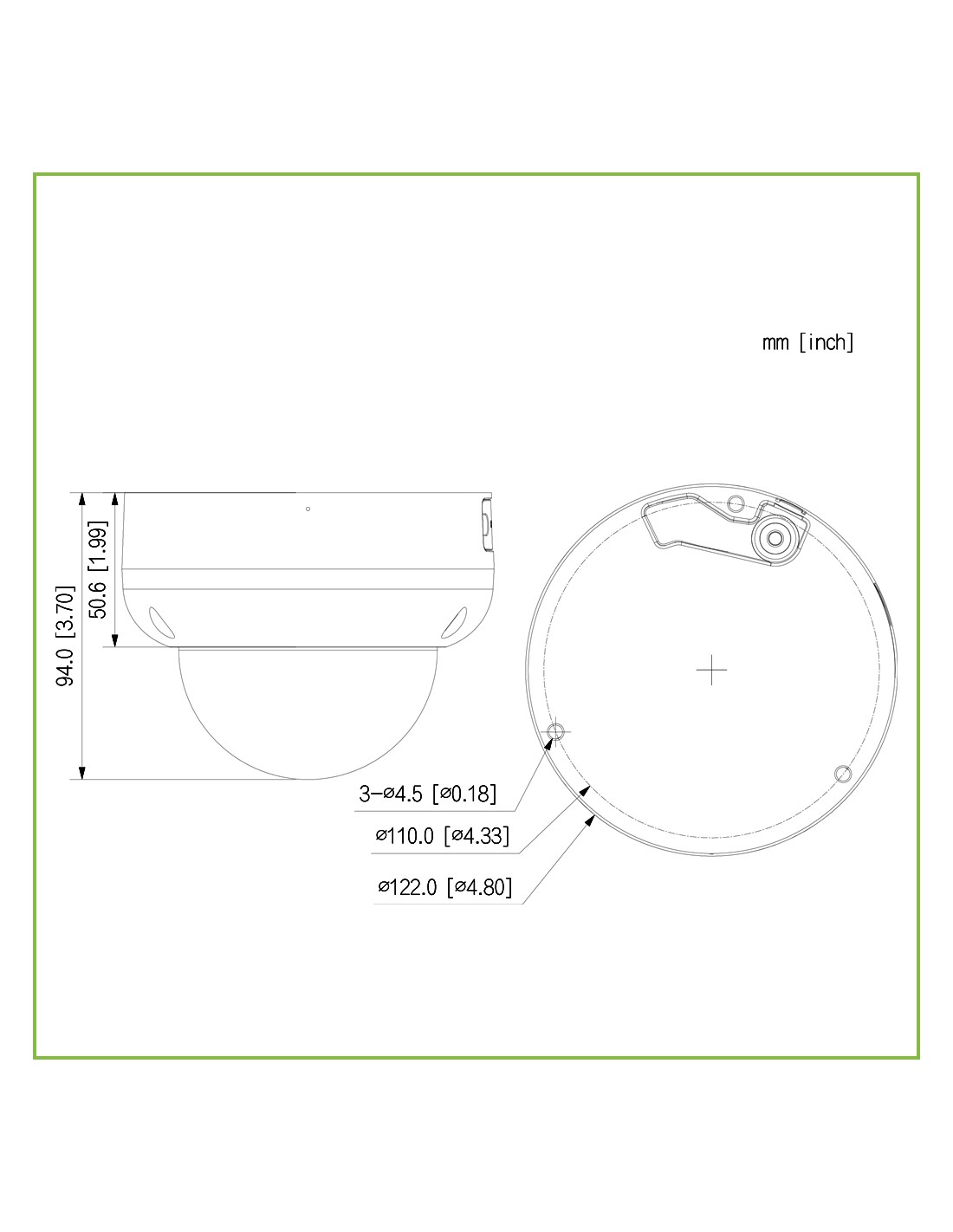

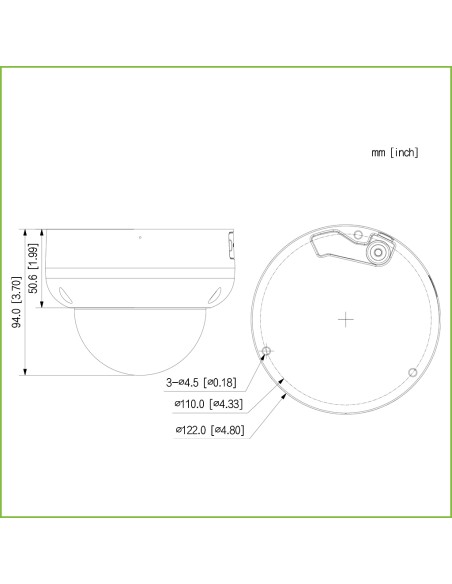

- Height: 105 mm
- Diameter: 12.6 cm
- Weight: 716.4 g
- Package weight: 929.7 g
- Number of cameras: 1
