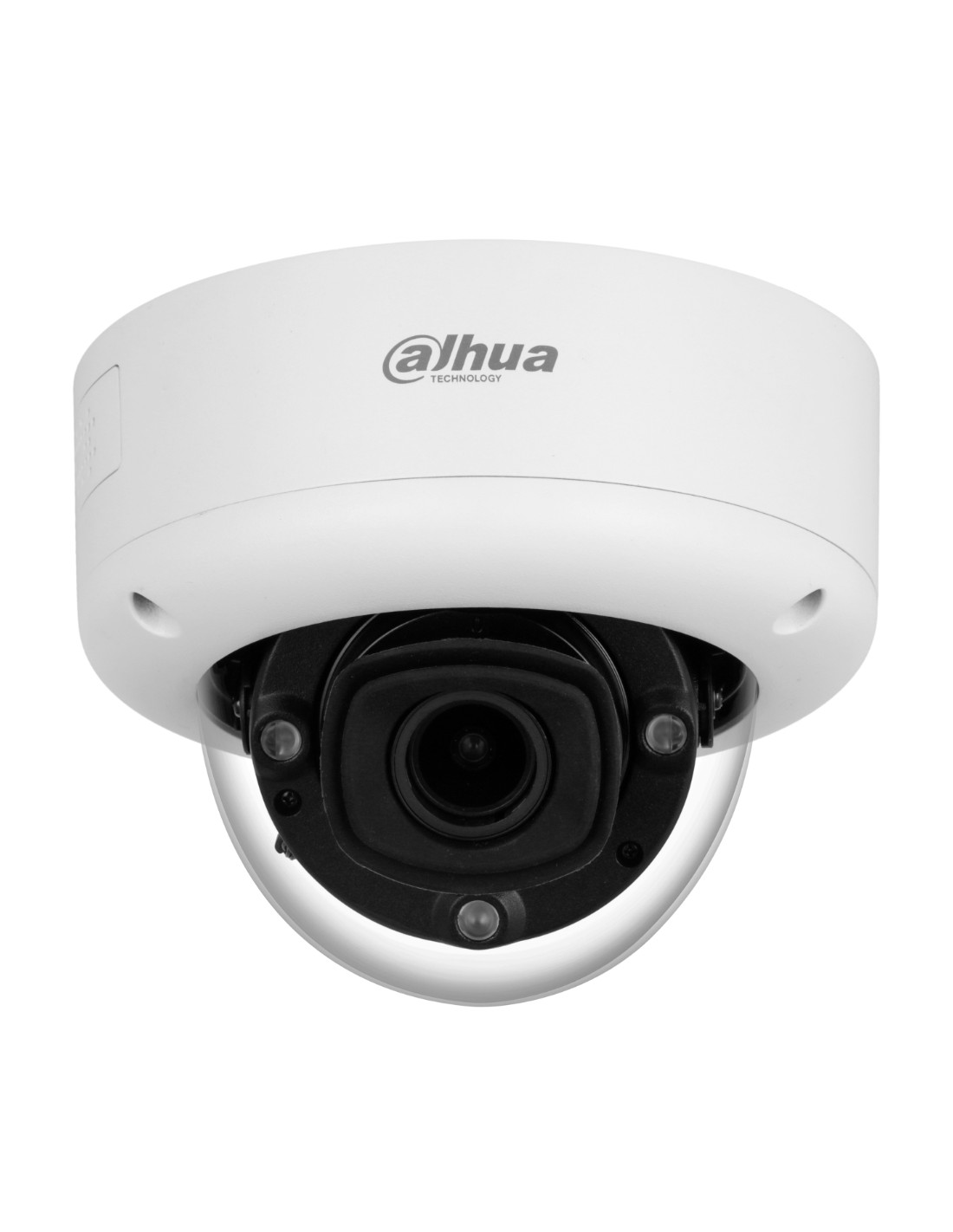

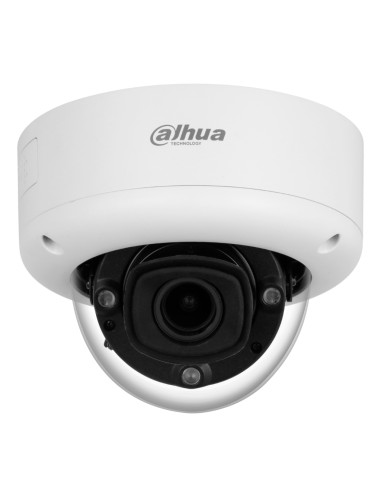

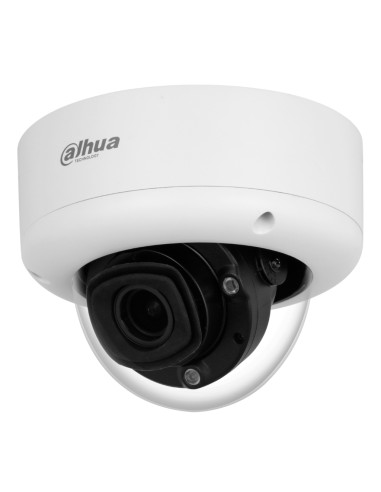

Domo IP H265 4M WDR140dB Deeplight IR80m 8-32VFM IK10 IP67 PoE+ SD AUDIO E/S AI

• Type: IP security camera
• Placement supported: Indoor & outdoor
• Connectivity technology: Wired
• Day/night mode: Yes
• Dynamic range: 140 dB
• Certification: CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-

• Form factor: Bullet

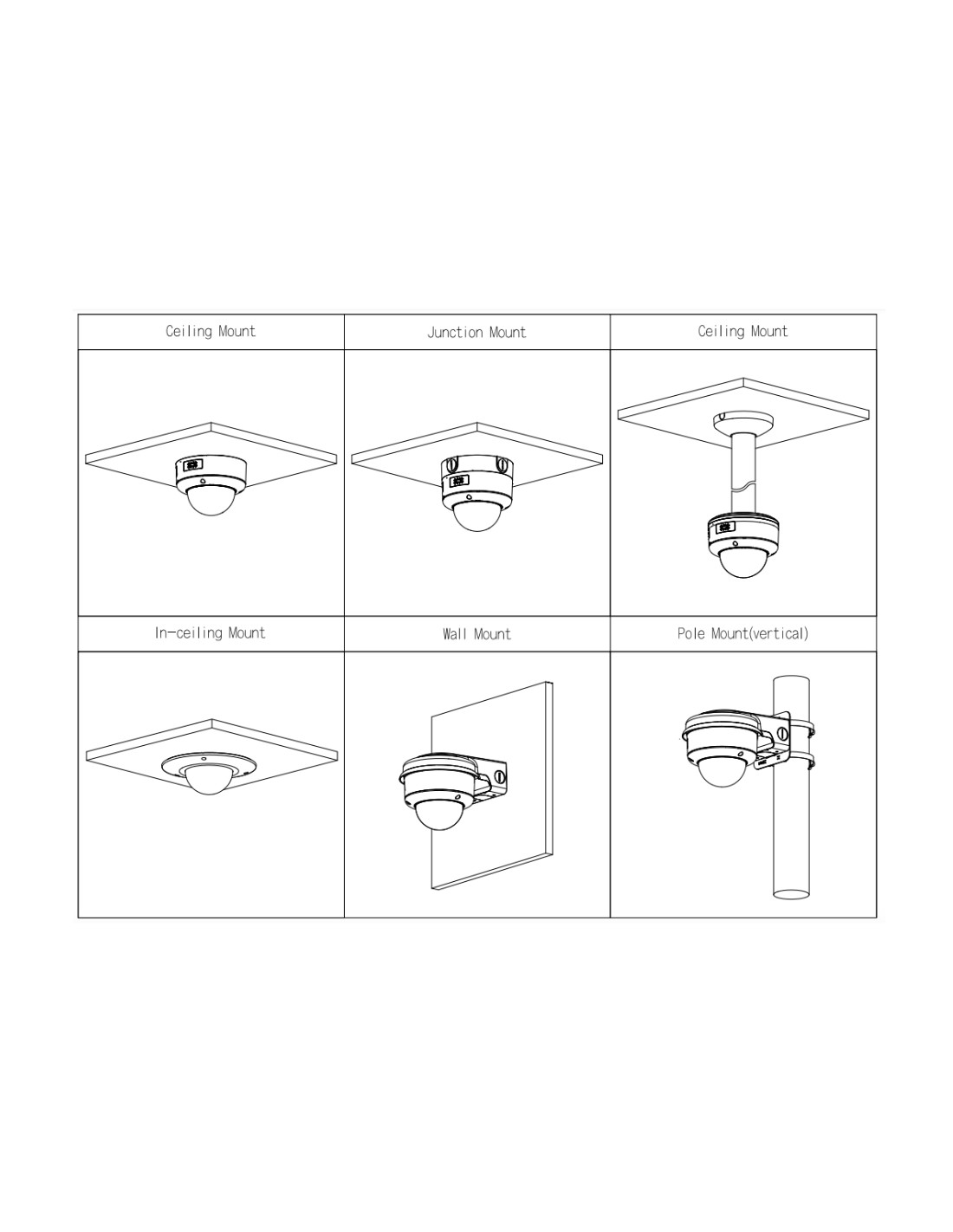

• Mounting type: Ceiling
• Product colour: White
• Housing material: Metal
• International Protection (IP) code: IP67
• IK code: IK10

• Minimum illumination: 0.0005 lx
• Angle of rotation: 355°
• Lens viewing angle, horizontal: 115 - 48°
• Lens viewing angle, vertical: 59 - 27°
• Lens viewing angle, diagonal: 142 - 55°
• Tilt angle range: 0 - 80°
• Pan range: 0 - 355°
• White balance: Auto, Manual, Natural, Outdoor, Street lamp
• Camera shutter speed: 1/3 – 1/100000

• Optical sensor size: 25.4 / 1.8 mm (1 / 1.8")
• Progressive scan: Yes
• Sensor type: CMOS
• Number of effective pixels (H x V): 2688 x 1520 pixels

• Number of lenses: 1
• Focal length range: 2.7 - 12 mm
• Focus: Motorized
• Maximum aperture number: 2.8
• Detect distance (wide): 60.4 m
• Detect distance (tele): 128.6 m
• Observe distance (wide): 24.1 m
• Observe distance (tele): 51.4 m
• Recognize distance (wide): 12 m
• Recognize distance (tele): 27.5 m
• Identify distance (wide): 6 m
• Identify distance (tele): 12.8 m
• Closest focusing distance: 1.75 m

• Night vision: Yes
• Night vision distance: 40 m
• LED type: IR
• Number of illumination LEDs: 3

• Maximum resolution: 2688 x 1520 pixels
• Total megapixels: 4 MP
• Video formats supported: H.264+, H.265+
• Video compression formats: H.264, H.264B, H.264H, H.265
• Supported graphics resolutions: 352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2304 x 1296, 2560 x 1440, 2688 x 1520
• Supported video modes: 720p, 1080p
• Frame rate: 60 fps
• Noise reduction: Yes
• Noise reduction technology: 3D noise reduction
• Gain control type: Auto/Manual
• Privacy masking: Yes
• Bit rate control: Constant Bit Rate (CBR), Variable Bit Rate (VBR)
• Bit rate: H.264: 3 kbps–20480 kbps H.265: 3 kbps–20480 kbps
• Back Light Compensation (BLC): Yes
• Highlight Compensation (HLC): Yes
• Region of Interest (ROI) encoding: Yes

• Audio input channels: 1.0 channels
• Audio output channels: 1.0 channels
• Audio formats supported: G.711, G.723, PCM
• Signal-to-Noise Ratio (SNR): 56 dB
• Built-in microphone: Yes

• Ethernet LAN: Yes
• Supported network protocols: IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP
• Number of users: 20 user(s)

• Compatible memory cards: SD
• Maximum memory card size: 256 GB
• Internal memory: 512 MB
• ROM capacity: 128 MB

• Ethernet LAN (RJ-45) ports: 1

• Alarm input channels: 1
• Alarm output channels: 1
• Video motion detection: Yes
• Intelligent Video Surveillance (IVS) system features: Abandoned object, Heat map, Missing object
• Mirror: Yes

• Web browser: Yes
• Management software: Smart PSS;DSS;DMSS

• Power source type: DC, PoE
• Power consumption (max): 7.4 W
• Power consumption (Power over Ethernet (PoE)): 3.3 W
• DC output voltage: 12

• Operating temperature (T-T): -30 - 60 °C
• Storage temperature (T-T): -40 - 60 °C
• Operating relative humidity (H-H): 0 - 95%

• Mobile operating systems supported: Android, iOS

• Height: 105 mm
• Diameter: 12.6 cm
• Weight: 716.4 g

• Package weight: 929.7 g

• Number of cameras: 1
